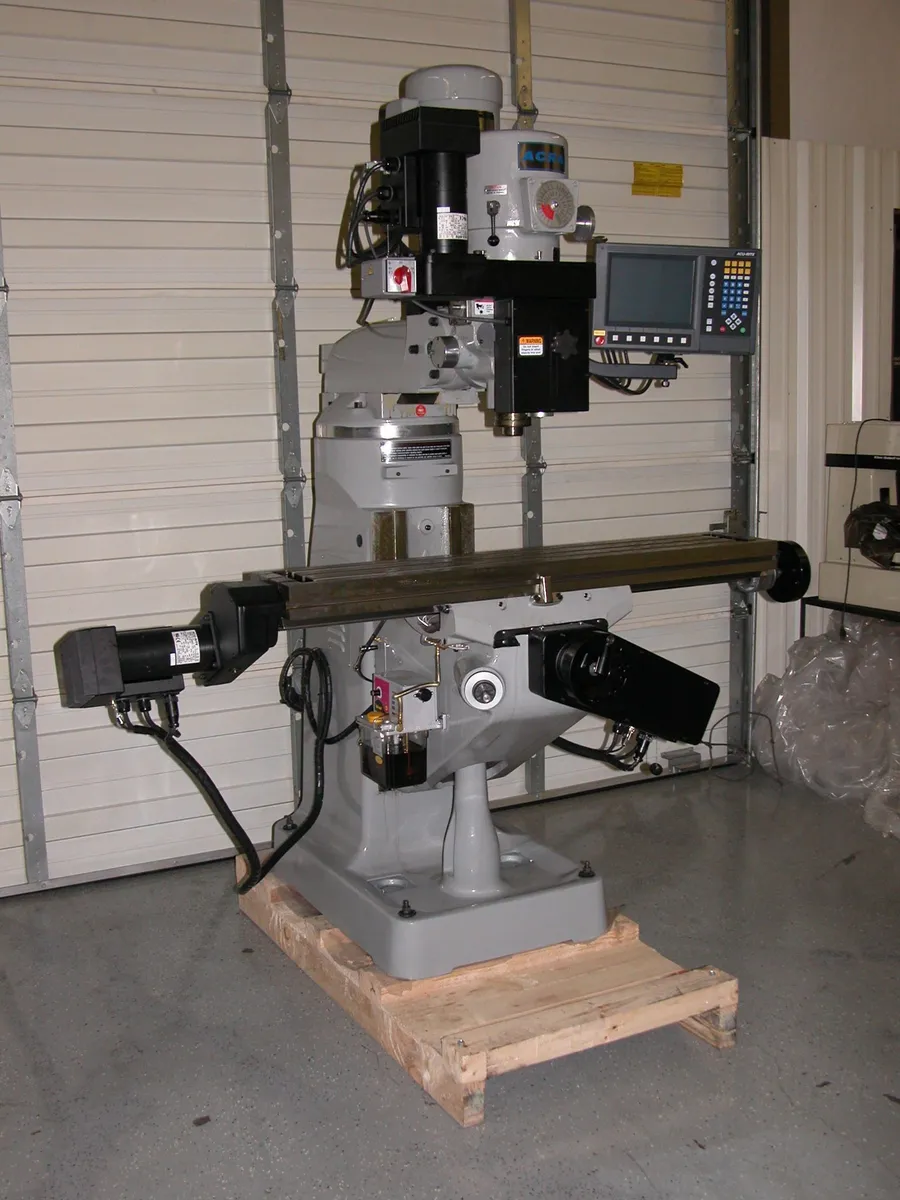

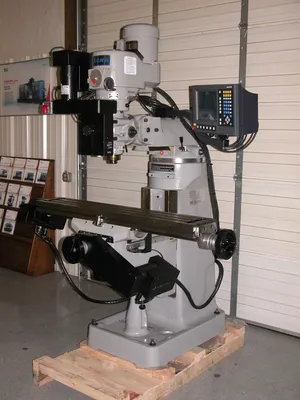

Package of (2) ACRA MILLPWR G2 3-axis CNC Retrofit Knee Mill Model # LCM50 950-3X

Standard Features:
• Large 12.1” Display (1024 x 768 TFT LCD)
• 2D and 3D Graphic Views
• Enhanced, Intuitive Program Navigation
• Easy Conversational Shop Floor Programming
• Increased Program Size Limit (Up to 9999 Steps)
• Auto Save Feature
• G-Code with Graphics Support AND Optional Stop Feature
• Preview Programs with Graphics and Estimated Time
• Improved Error Compensation
• Translate DXF Files Directly Into Program Code
• Built-In Alphanumeric Engraving Capability
• USB Connectivity - Front & Back
• Remote Stop/Go Switch
• On-Screen Help with Text AND Graphics
• Hardened and Ground Ways And Table
• Precision Ground And Hardened Ballscrews
• Turcite on X & Y
• Automatic Lubrication System
• XYZ Scales

Available Options:
• Offline Software - This allows you to create
programs on a Windows compatibile PC and permits
those programs to be loaded into the MILLPWRG2
via USB or ethernet.
• Knee Scale for Coupling Z (Quill) and W (Knee) G2
This option provides the machine operator positional
feedback on the control when the knee is manually moved.
• Electronic Edge Finder or Touch Probe - The stylus is deflected
when it contacts the workpiece, and the edge finder sends a
triggering signal over the connecting cable.
The edge finder allows you to set datums quickly and easily,
without leaving marks on the workpiece.

Plus MILLPWRG2 is backed by a comprehensive
2-year warranty and supported by a nationwide
network of factory trained and certified distributors.
