Bendmak CY4R-HHS 230-20/13 4 Roll Plate Roll
Have one to sell?
ConditionNew
1 available
New

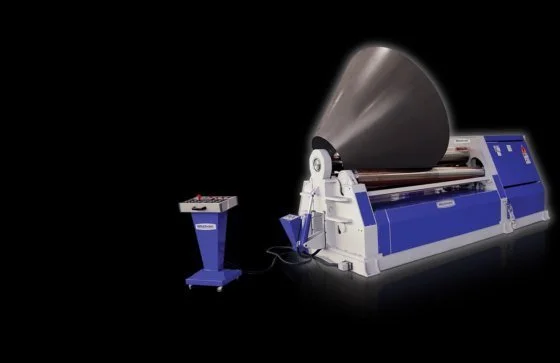

1⁄2” X 6’ BENDMAK Model CY4R-HHS 230-20/13 4-Roll Plate Roll with Cone Bending Device, Induction Hardened Rolls, Digital Display for Side Rolls, Fully Welded ST-52 Construction Body, Separate Moving Body, Separate Moving Control Panel, Two Rolling Speeds, Electro-Hydraulic Calibration, All Rollers Mounted in Spherical Roller Bearings, Safety Equipment Around Machine, Central Rolls Driven by Hydraulic Motors and Planetary Gearbox.
Working Length: 6’
Max. Thickness: 1⁄2”
Max. Pre-Bend: 3⁄8”
Top Roll Diameter: 9.1”
Bottom Roll Diameter: 8.3”
Side Roll Diameter: 7.5”
Motor Power: 10 HP
Length: 13.6’
Height: 4.3’
Width: 4.6’
Weight: 10,472 LBS
Cone Bending Device, Induction Hardened Rolls, Digital Display for Side Rolls, Fully Welded ST-52 Construction Body, Separate Moving Body, Separate Moving Control Panel, Two Rolling Speeds, Electro-Hydraulic Calibration, All Rollers Mounted in Spherical Roller Bearings, Safety Equipment Around Machine, Central Rolls Driven by Hydraulic Motors and Planetary Gearboxes.
OPTIONS:
Variable Speeds: ................... $9,260
Material Feeding Table: ........ $6,730
Hydraulic Oil Cooler: .............. $2,060
Center Support: ...................... $16,320
Side Support: .......................... $11,000
CNC CONTROL: ....................... $19,040
***We strongly encourage personal inspection of all pieces of equipment***
***All Price, Location and Specifications Subject to Change without Notice***
