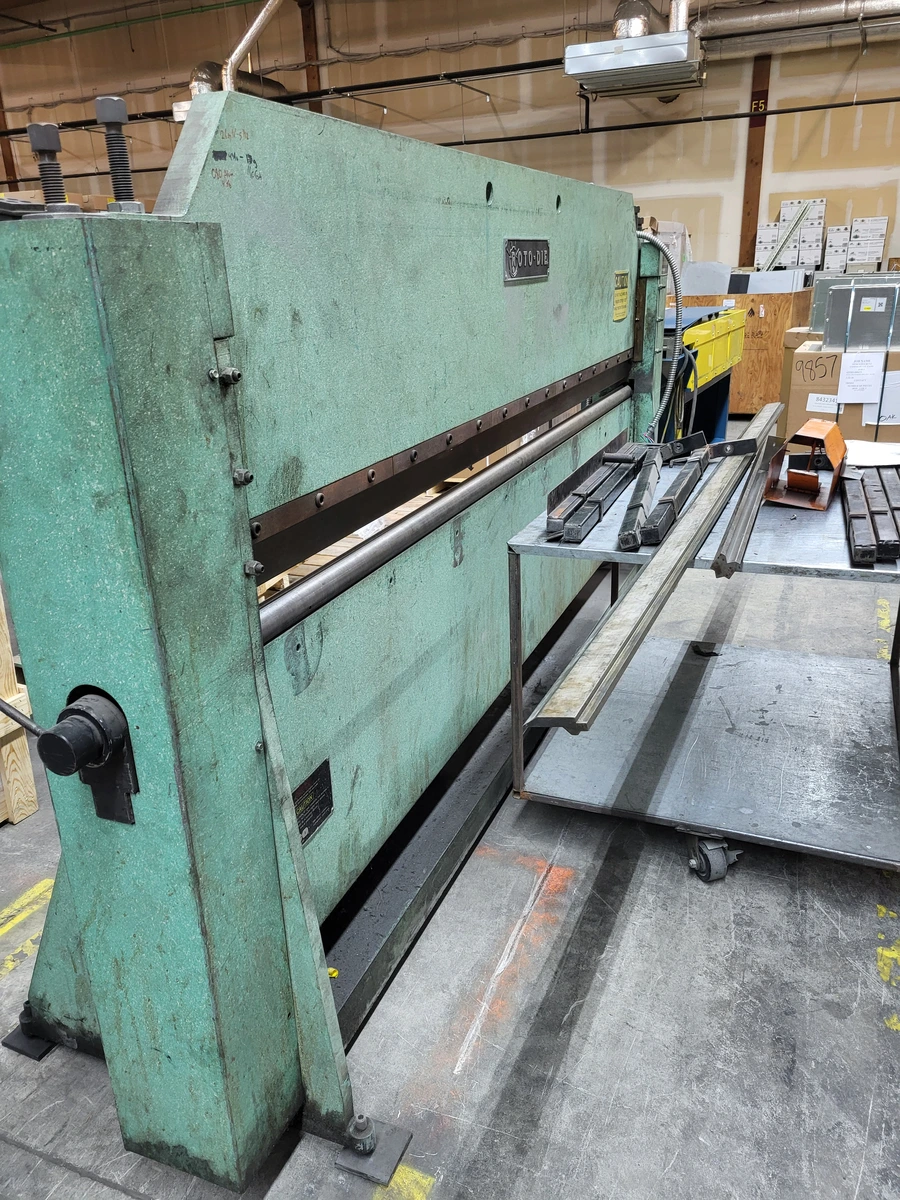

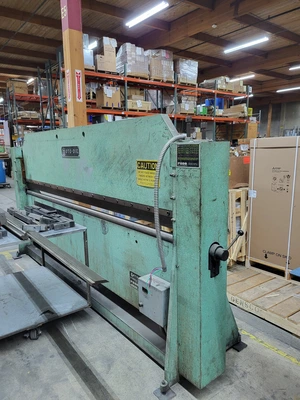

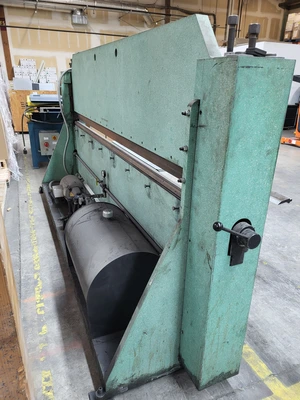

10' x 16 GA ROTO-DIE HYDRAULIC PRESS BRAKE

Have one to sell?
251-943-0048
don@gulfcoastmach.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Brakes - Hyd. & Mech., Hydraulic Brakes
Manufacturer:
ROTO-DIE
Model:
10
Stock #:
2216
Status:
For Sale
Serial #:
82405
Country:
United States

Description

10' x 16 GA ROTO-DIE HYDRAULIC PRESS BRAKE,

Tonnage15 T13.608 t
TypeHYDHYD
OA Length12'3.7 m
Between Housings10'3 m
Stroke3"76.2 mm
# Axis00
Dimensions12'1" x 1'10" x 5'4" H12'1" x 1'10" x 5'4" H
Weight5700 LBS5700 LBS

CATALOG SPECIFICATIONS:
Bending Capacity, w/7/8" Die Opening 10' x 16 GA
Bending Capacity, w/1/2" Die Opening 10' x 20 GA
Bending Capacity, w/Angle Insert 6' x 10 GA
Stroke Length 3"
Die Space 7.5"
Die Clearance 2.125"
Strokes Per Minute, Range 20 to 50 SPM
Bed & Ram Plate, Thickness 2.25"
Bed & Ram Depth 25"
Bed & Ram Length 123"
Hydraulic Motor, Horsepower/RPM 7.5 HP/1755 RPM
Electrical System 208-230-460/3/60
Overall Dimensions, L x D 12'1" x 1'10"
Overall Height 5'4"
Weight, Approximately 5700 LBS

Foot Pedal Control

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
