NEW ACRA 1800C PRECISION ENGINE LATHES
Have one to sell?
ConditionNew
1 available
New

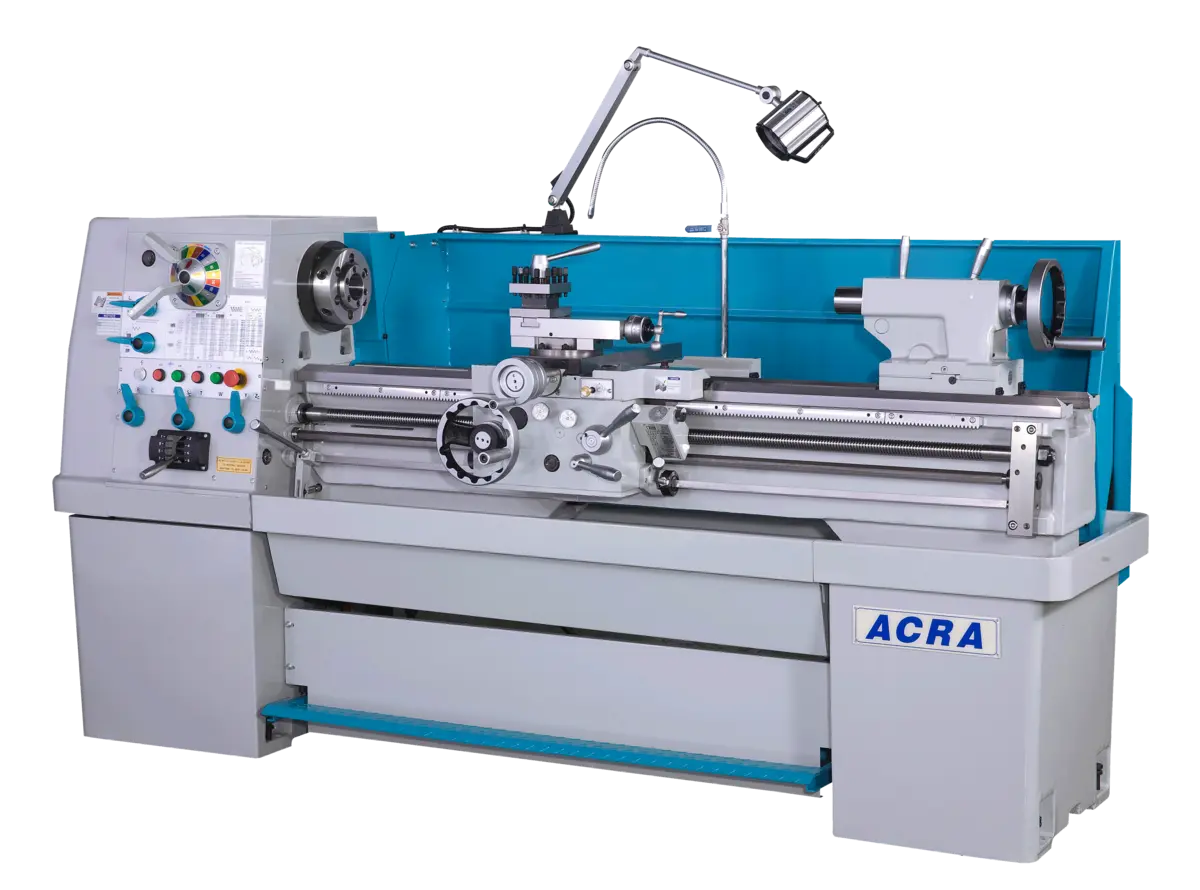

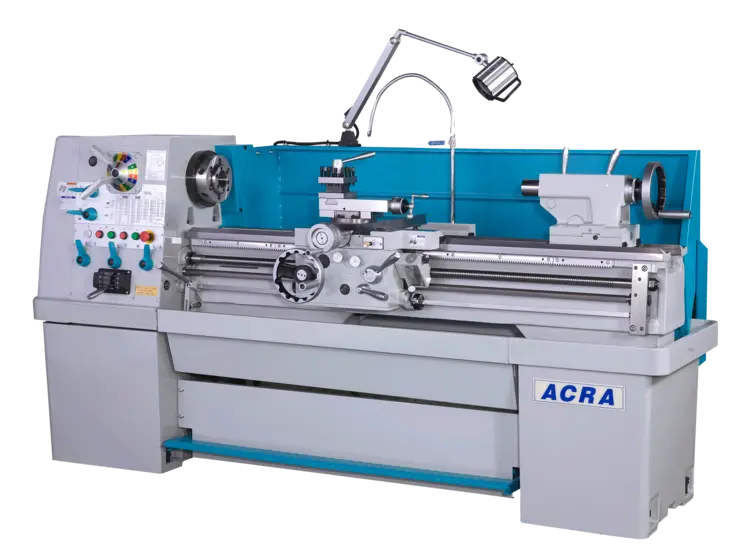

18" X 60" ACRA MODEL 1880C PRECISION GAP BED ENGINE LATHE WITH CLUTCH
Swing Over Bed: 18"
Swing Over Cross Slide: 11"
Swing in Gap: 28"
Spindle Bore: 3-1/8"
Spindle Nose: D1-8
Spindle RPM: 20 – 1600 (16 Speeds)
Main Motor: 12-1/2 HP
Voltage: 230/460V AC~3PH
STANDARD EQUIPMENT:
10"/12" 3 Jaw Chuck
12"/14" 4 Jaw Chuck
Steady/Follow Rest
Coolant System
Halogen Light
4 Way Tool Holder
Full Length Splash Guard
Micro Bed Stop
Chuck Guard
Bed:
• BASE ONE PIECE CASTING.
• MEEHANTE CASTING, VIBRATION STRESS RELIEVED.
• INDUCTION HARDENED AND PRECISION GROUND BED WAYS PRECISION HAND SCRAPED REMOVABLE GAP.
• FOOT BRAKE.
• TURCITE B COATING BETWEEN THE BED AND CARRIAGE.
Universal Gearbox:
• OIL BATH LUBRICATION.
• HEAT TREATED PRECISION GROUND GEARS.
• INCH, METRIC, MODULE AND DIAMETRICAL THREADS.
Apron and Saddle:
• AUTOMATIC FEED AND THREADING, FULLY INTERLOCKED.
• SADDLE AND TOP SLIDE LOCKING SYSTEM.
• FORWARD-OFF-REVERSE LEVER.
• 4 WAY TOOL POST.
• T-SLOT COMPOUND.
Spindle:
• SUPPORTED BY 2 PRECISION TAPER ROLLER BEARINGS AND ONE BALL BEARING.
• DYNAMICALLY BALANCED, HARDENED AND PRECISION GROUND.
Headstock:
• FORWARD REVERSING CLUTCH.
• ALL GEARS CHROMIUM MOLYBDENUM, HEAT TREATED AND PRECISION GROUND.
OPTIONAL ACCESSORIES: PRICE:
Face Plate ............................. $ 600.00
Taper Attachment ................... $ 2,000.00
Taper Attachment Installation ................................... $ 425.00
Lever Type 5C Collet Closer JFK................................. $ P.O.R.
Import Collet Closer (Taiwan)…................................... $ 1,450.00
Newall Digital Read-Out-10" X 60" DP700…................ $ 3,250.00
Newall Digital Read-Out-10" X 60" NMS300…………... $ 1,650.00
Newall Digital Read-Out-10" X 80" DP700................... $ 4,000.00
Newall Digital Read-Out-10" X 80" NMS300……………… $ 1,900.00
Newall Digital Read-Out-10" X120" DP700.................. $ 5,200.00
Newall Digital Read-Out-10" X120" NMS300…………… $ 2,450.00
Acu-Rite Digital Read-Out-10" X 60" 203...................... $ 3,350.00
Acu-Rite Digital Read-Out-10" X 80" 203...................... $ 3,900.00
Acu-Rite Digital Read-Out-10" X 120" 203.................... $ 5,000.00
Acu-Rite Digital Read-Out-10" X 60" 303.................... $ 3,800.00
Acu-Rite Digital Read-Out-10" X 80" 303.………............ $ 4,350.00
Acu-Rite Digital Read-Out-10" X 120" 303.……….......... $ 5,500.00
Sony or Fagor or Mitutoyo Digital Read-Out................. $ P.O.R.
D.R.O. Installation ….…………………….................. $ 375.00
Aloris Tool Post Set (CA) 5 pc……….……..…..……………..P.O.R.
Import Quick Change Tool Holder ................................500.00
Live Center MT 5…………………...……............................... $ 500.00
