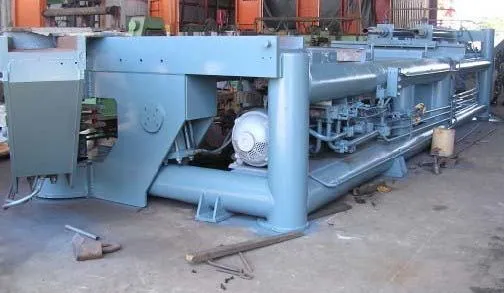

WALLACE 448-8 Heavy Duty Hydraulic Rotary Pipe Bending Machine
Have one to sell?
ConditionUsed
1 available
10" WALLACE Heavy Duty Hydraulic Rotary Pipe Bending Machine
CAPACITIES, COLD BENDING:
Tubing: 10" x .125"
Pipe: 8" Schedule 80 (8.625" OD x .500" Wall)
Angles: 6" x 6" x 1/2"
Channels: 10" x 25#
I-Beams: 7" x 20#
Flat Bars: 3/4" x 6"
Round Bars: 5-1/2"
Square Bars: 4-7/8"
SPECIFICATIONS:
Radius For Pipe, Min.: 3 x OD
Centerline Pipe To Floor: 60"
Radius Centerline, Max.: 56"
MOTOR DATA: 25 HP, 220/440/3/60 - 1178 RPM, Westinghouse, 64/32
Amps
WEIGHT (Approx.): 50,000 Lbs. Plus Molds & Dies
Ex-Conus - FOB two shipping containers
Flexible Ball Mandrel w/Outside Diameter of 7",
7-1/2", 7-3/4" & 8" (1 Pc. Each)
LIST OF BENDING DIES:
16" Mean, 7-5/8" Outside Pipe Dia., 90 Degree of Bend
24" Mean, 7-5/8" Outside Pipe Dia., 90 Degree of Bend
17" Mean, 8-5/8" Outside Pipe Dia., 90 Degree of Bend
26" Mean, 8-5/8" Outside Pipe Dia., 90 Degree of Bend
26" Mean, 8-5/8" Outside Pipe Dia., 90 Degree of Bend
LIST OF BENDING DIES (CONT.):
21" Mean, 4" Outside Pipe Dia., 180 Degree of Bend
24" Mean, 4-1/2" Outside Pipe Dia., 180 Degree of Bend
24" Mean, 5-1/2" Outside Pipe Dia., 180 Degree of Bend
25" Mean, 5-1/2" Outside Pipe Dia., 180 Degree of Bend
30" Mean, 5-1/2" Outside Pipe Dia., 180 Degree of Bend
24" Mean, 6" Outside Pipe Dia., 180 Degree of Bend
36" Mean, 6-5/8" Outside Pipe Dia., 180 Degree of Bend
42" Mean, 6-5/8" Outside Pipe Dia., 180 Degree of Bend
24" Mean, 7-1/2" Outside Pipe Dia., 180 Degree of Bend
20" Mean, 8-5/8" Outside Pipe Dia., 180 Degree of Bend
(2)24" Mean, 8-5/8" Outside Pipe Dia., 180 Degree of Bend
(2)36" Mean, 8-5/8" Outside Pipe Dia., 180 Degree of Bend
***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
