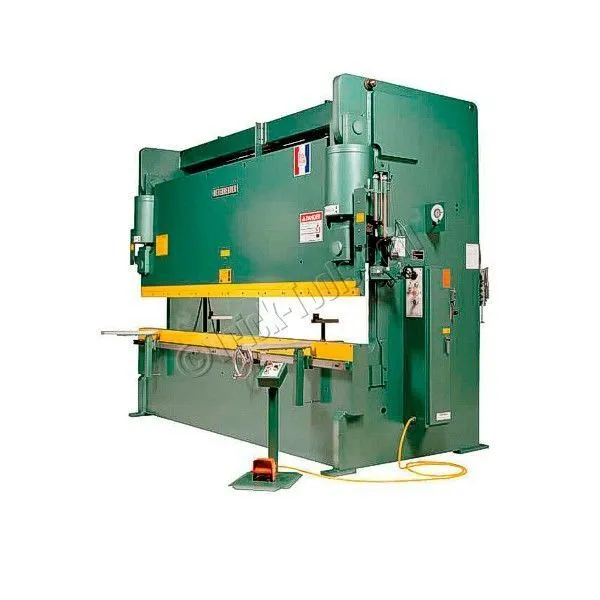

BETENBENDER MODEL 10-190 HYDRAULIC PRESS BRAKE

Clamp Type Back-gauge-Manual - Adjustable X,Y,Z
Bottom Time Delay
Three Position Foot Pedal
NEMA Electrics
Depth Stop w/Digital Readout
All Hydraulic Fluid Included
All Steel Construction
American Made Motor
Disconnect Switch
Hour Meter
Two-Speed Ram
Lifetime Telephone Support @ No Charge All Components Available from
Local Suppliers

ACCURACY
Every Betenbender machine is thoroughly inspected and tested.
1.Parallelism is maintained between bed and ram or at preset angle by using precision automatic leveling controls. Parallelism is maintained at +/-.002" in low speed.
2.The ram bottom reversal point is controlled by precise limit switches referenced off the bed. This isolates housing deflections, which can interfere with its accuracy.
ENHANCED PRODUCTIVITY
Return speed and rapid advance facilitates high cycle rates.
Operator control is simplified by slow and press speed, thus work spoilage is avoided. Rapid advance with automatic change. The point of speed change is fully adjustable by electric limit switch.
Micrometer type tilt adjustment is graduated in .001" increments permitting ram tilt adjustments up to 1/2" in either direction.
ELECTRO MECHANICAL STROKE CONTROL is bed referenced.
Bottom limit is manually set with a lead screw and displayed by an mechanical readout calibrated in .001" increments.
VERSATILITY
BETENBENDER'S press brakes have long full tonnage strokes, adjustable length and selectable speed combinations, adjustable height for short stroke, 2-speed standard and the optional 3- speed for adjustable low speed to prevent whip.
ELECRICAL EQUIPMENT
Meets requirements of NFPA no.79, JIC and construction requirements of the latest ANSI B-11.3 Standards. Includes drip-proof, continuous duty 45 degree Celsius ambient hydraulic pump motor wired for 230 or 460 volt, 3 phase 60 hertz.
DEPENDABILITY
Self-lubricating replaceable non-metallic ways prevent galling and provide long service life. Cylinders are high-strength, all steel. To minimize wear and provide a superior oil seal, inside cylinder surfaces are honed to a mirror finish.
Compact, precision machined aluminum manifold incorporates off-the shelf components, minimizes piping and consolidates "O" ring mounted valves.
Quiet, vane type, constant volume pumps. In keeping with good hydraulic design practice, these energy efficient pumps are located outside the reservoir.
Filtration of contaminants as small as 10 microns is accomplished with intake and discharge filters. A built-in magnetic trap and air breather filter provides added protection against contaminants. Reservoir of large capacity facilitates effective heat dissipation. A fluid level gauge is provided.
CONTROL
Main Control Cabinet - NEMA 10 enclosures mounted in the right housing containing: magnetic non-reversing motor starter and 100 volt circuit.
Main motor START button and STOP button are illuminated.
RAM UP and RAM DOWN buttons. RUN/JOG Switch. Fusible disconnect.
MAINTENANCE
Clevis mounted cylinders eliminate cylinder binding by reducing the possibility of oil leaks from cylinder binding. (Pins & bushings do not rotate under load, this reduces excessive wear)

24" Support Arms "Slide Type".(pair)........................................................ 920
Work Light .................................................................................................. 350
One Shot Lubrication ................................................................................ 880
Keylock Switch ........................................................................................... 205
Bolt/Shim Kit for Leveling ........................................................................ 340

Press Brake Options -
*Manual Front Reading Backgauge (24") w/Mechanical Readout ..... $2,420.00
Power Front Reading Backgauge w/5 Station NC "Go To" Controller on Pendant. . . . . . . . . . 4,285.00
Power Ram Adjustment w/5 Station NC "Go To" Controller on Pendant .. 1,930.00
Extra Length on Backgauge . ………………………………………………………………. 470.00 per foot
CNC Ram Stop ..................................................................................... P.O.R.
CNC Backgauge .................................................................................. P.O.R.
*24" Support Arms "Slide" Type ......................................................... 920.00 pair
Extend Support Arms (each). ..........................................45.00 per foot
Disappearing Stops .................................................................. 160.00 each
*Work Light ................................................................................ 350.00
*Variable Tonnage Control ....................................................... 1,225.00
*One Shot Lubrication ............................................................... 880.00
Automatic Lubrication ............................................................. 2,450.00
Oil Cooler (Standard) ............................................................... 1,500.00
Oil Cooler (Kidney Loop System) ..................................... 5,000.00
*Light Curtain ......................................................................... 6,000.00
*Operator Station Palm Control ............................................ 1,450.00
Additional Foot Pedal w/Key Lock ........................................ 850.00
Palm Buttons/Foot Control System ..................................... 2,450.00
(Hand buttons to preset height, stop and hold, foot to continue to shut height.)
Dove Tails or T-Slots .............................................................. 170.00 per foot
Ram Machining ..................................................................... 1,500.00
Bed Machining Angle Brackets ............................................ 1,500.00
Angle Brackets (Plates) for Top (4"x4") 18" Shorter than Bed . 220.00 per foot
Angle Brackets (Plates) for Bottom (4"x4") 18" Shorter than Bed ...................... 220.00 per foot
Increase Throat Gap or Increase Open Height..........................780.00 per inch
100T 920.00 per inch
160T ............... 1,250.00 per inch
190T ................ 1,380.00 per inch
240T ................. 1,560.00 per inch
Increase Stroke Length .......................................... P.O.R.
Keylock Switch .............................................................................. 205.00
Die Rollover Bars (Recommended for 4/Way Dies) .................. 160.00
Air Lift (Recommended for 4/Way Dies) ................................. 1,320.00
Dual Calibration ......................................................................... 350.00
Crating Charge (Not An Export Crate) Still Requires Tarping ............ P.O.R.
Special Paint Colors ................................................................ P.O.R.
Bolt/Shim Kit for Leveling ...................................................... 340.00
Ram Stop Control (1/4" Above Die) ...................................... 2,450.00

Rigging, Lagging, Leveling & Electrical Hook Up is Customers Responsibility
ASK ABOUT OPTIONS NOT LISTED.
ALL PRICES SUBJECT TO CHANGE WITHOUT NOTICE.
*RECOMMENDED OPTIONS
FREIGHT QUOTES ARE PROVIDED AS A COURTESY UPON REQUEST

TOOLING
Model U5-10 Punch x 120" Length ............................................................ 1,025
Model L12-10 Die x 120" Length ................................................................ 1,757
Model BA-1 Die Holder with 3" Clean Up & 2" Net Hgt x 120" Length ...... 1,760
** $40.00 per cut to segment punches and dies
U5 Punch L12 Die BA-1 Die Holder *Other Tooling Available Upon Request - See Attached Catalog
* Prices Do Not Include Rigging Costs - Unloading shear off truck, setting machine in place, leveling & lagging
to floor and electrical hook-up is not included in pricing.
* Machine Start-up/Training of Operators/Maintenance Personnel is Included.
* All Hydraulic Oil Included.
* Rigging, Leveling, Lagging and Electrical Service is Customers Responsibility.
TERMS: 25% deposit, balance before shipment
DELIVERY: Approx. 10-12 Weeks After Receipt of Order with Deposit
Prices are Valid For 30 Days
QUOTE EXPIRES ON (12/31/2024)

Betenbender Manufacturing,Inc. guarantees their product against failure by defective workmanship or material which occurs after the product is properly installed within product specifications and during normal use and operation for the period of one(1) year, and the frame shall be free of manufacturer defect for a period of five years.
We will replace all parts, , that our inspection shows to be defective from for one year after delivery date, but not installation or other charges . Written permission for warranty returns must be obtained before shipment. Ship all returns freight prepaid and include a complete explanation of the problem.
The only warranty extended to the buyer by Betenbender Manufacturing is the above expressed warranty and there are no other warranties, expressed or implied, of merchantability, fitness for a particular purpose, or otherwise which extend beyond the face hereof. Betenbender Mfg. shall in no event be liable for labor or freight charges or for consequential or incidental damages including, but not limited to, injury to the person or property of buyer or any others, machine down time, and losses or expenses incurred by buyer, arising from the use of this equipment or from this agreement. This warranty constitutes the entire warranty of the manufacturer, Betenbender Mfg., and no oral representations, warranties or guarantees by any agent of Manufacturer or seller shall be binding on Betenbender Mfg. And no part of this warranty may be modified or extended except by written agreement executed by Betenbender Manufacturing, Inc.
It is our policy to improve its products whenever possible and practical to do so. We reserve the right to make changes, improvements and modifications at any time without incurring the obligation to make such changes, improvements and modifications on any equipment sold previously.
