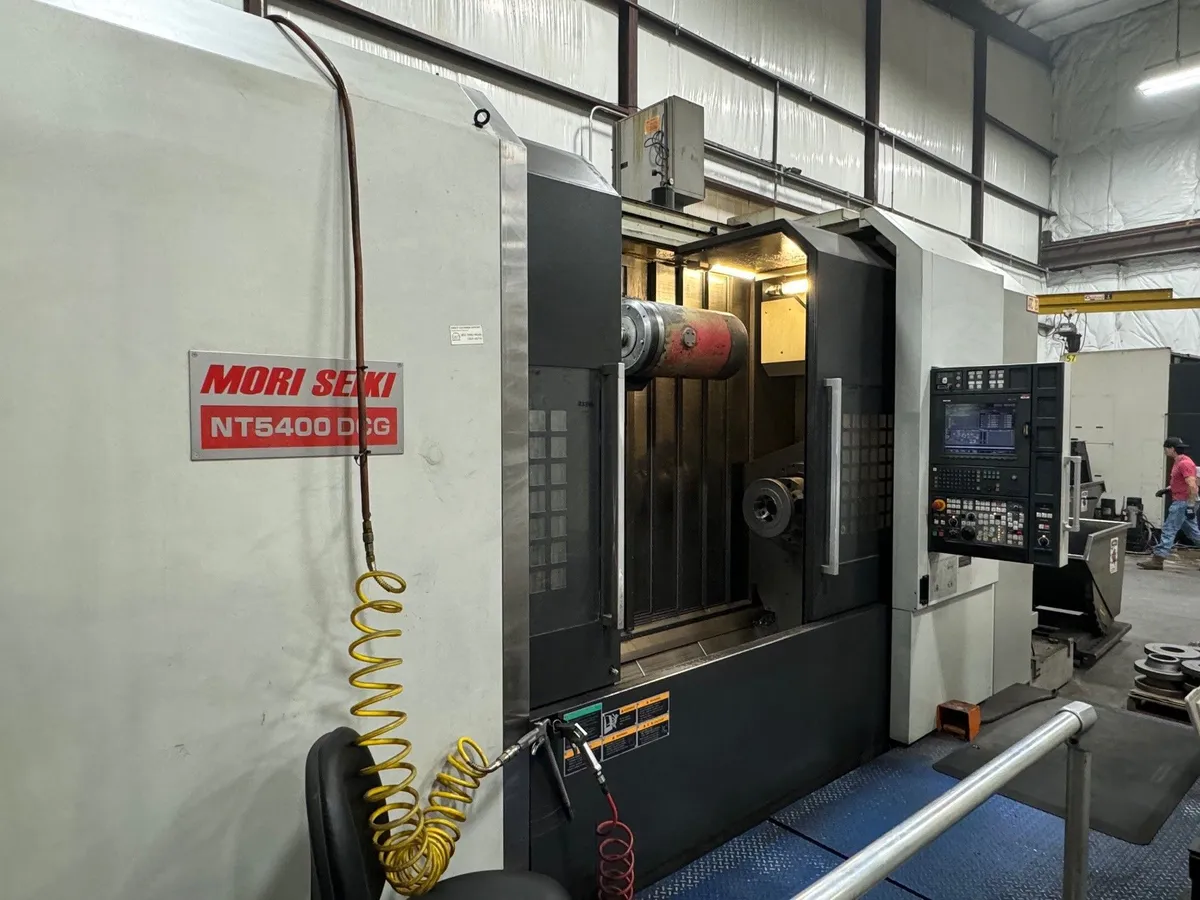

Mori Seiki NT5400/1800SZ CNC 5-Axis Horizontal Turning Center

Year: 2007
Control: MSX-711 III
Max swing: 36.2"
Swing over cross slide: 36.2"
Maximum machining diameter: 36.2"
Maximum machining length: 75.6"
Main spindle speed: 2400 rpm
Main spindle bore: 4.7"
Main spindle nose: A2-11
Main motor: 50/40hp
Max sub-spindle speed: 2400 rpm
Sub spindle bore: 4.7"
Sub spindle motor: 50/40 hp
ATC capacity: 80 tools
X-axis travel: 40.9"
Y-axis travel: +/-10" from center
Z-axis travel: 76.4"
Main Milling Spindle maximum speed: 8,000 rpm
Main Milling Spindle motor: 40/30 hp
Spindle taper: C8
C-axis indexing main spindle: .001 deg
C-axis indexing sub spindle: .001 deg
Main chuck diameter: 18.0"
Number of jaws: 3
Sub chuck diameter: 15.7"4
Number of jaws: 4
B-axis: 230 degrees
