BULLARD DYNATROL 46" VERTICAL TURRET LATHE / BORING MILL
Have one to sell?
ConditionUsed
1 available

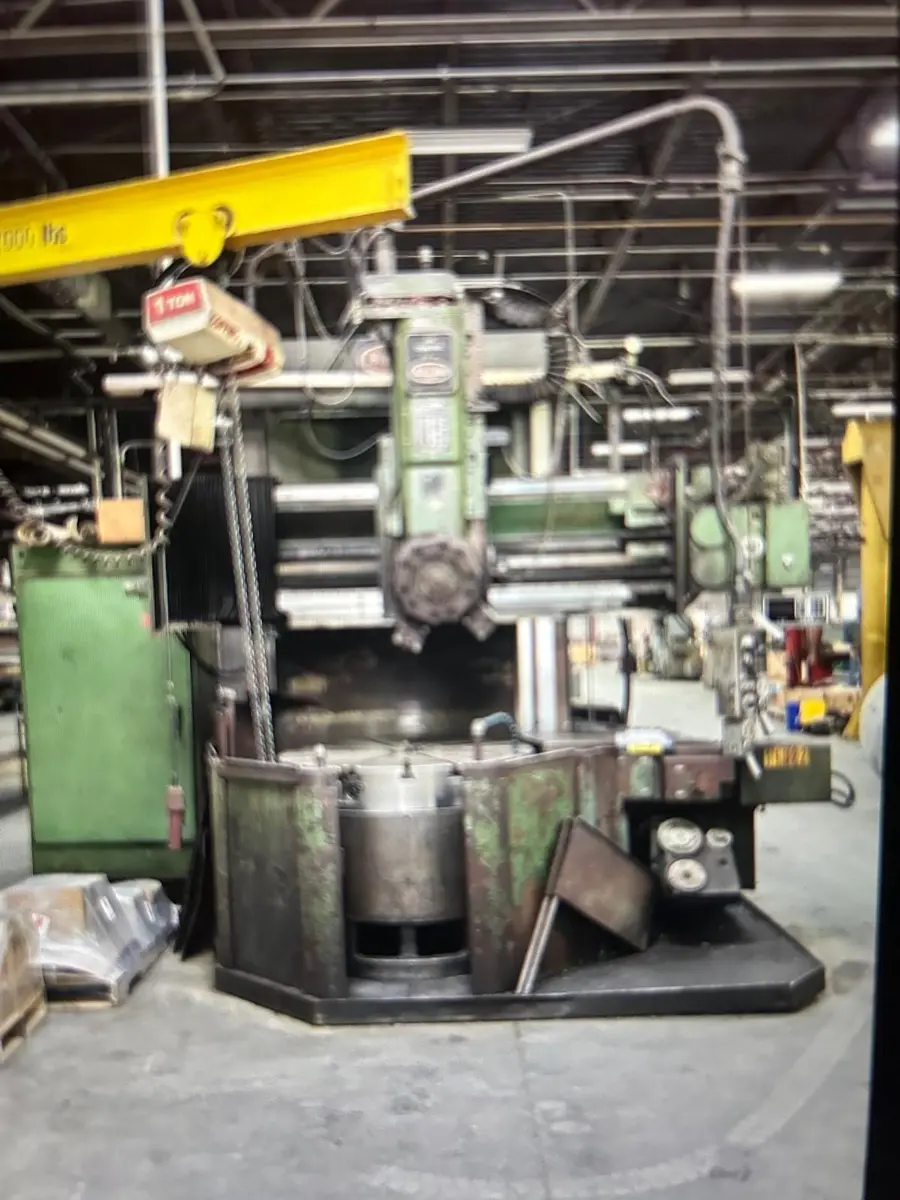

46" BULLARD DYNATROL VTL - Vertical Boring Mill, 46" 4-Jaw Chuck, 5-Sided Turret on Rail, Side Head, Pendant Control, Spare Parts,
Catalog Specifications:
Swing With Side Head Above Table ........... 49"
Swing With Side Head Below Table ........... 58"
Height Under Cross Rail .................... 40"
Vertical Travel of Cross Rail .............. 30"
Max Height Under Turret Face ............... 50 3/8"
Vertical Travel of Turret Head ............. 26"
Horizontal Travel of Turret Head ........... 65"
Turret Head Tool-Post Holes ................ 2 3/4"
Max Height Top of Side Head Ram to Table ... 36 1/4"
Vertical Travel of Side Head ............... 38 3/4"
Horizontal Travel of Side Head ............. 23 3/4"
Built in 4-Jaw chuck Table ................. 46" Dia
SPEEDS ..................................... (20) 5.1-187 RPM
(16) FEEDS MECHANICALLY GEARED ............. .0006"-.125" IPR
Approximate Dimensions 144" x 108" x 144" H
Approximate Weight 48,000 Lbs.
***We strongly encourage personal inspection of all pieces of used equipment-
All Price, Location and Specifications Subject to Change without Notice-
*Preliminary equipment descriptions are intended only as a guide, items of importance should be verified by the buyer-
Freight charges are not included in sale price. Freight scheduling and costs are responsibility of the buyer. Packaging charges to ensure safety of equipment during transport for arrival on buyers truck will be added when applicable.
