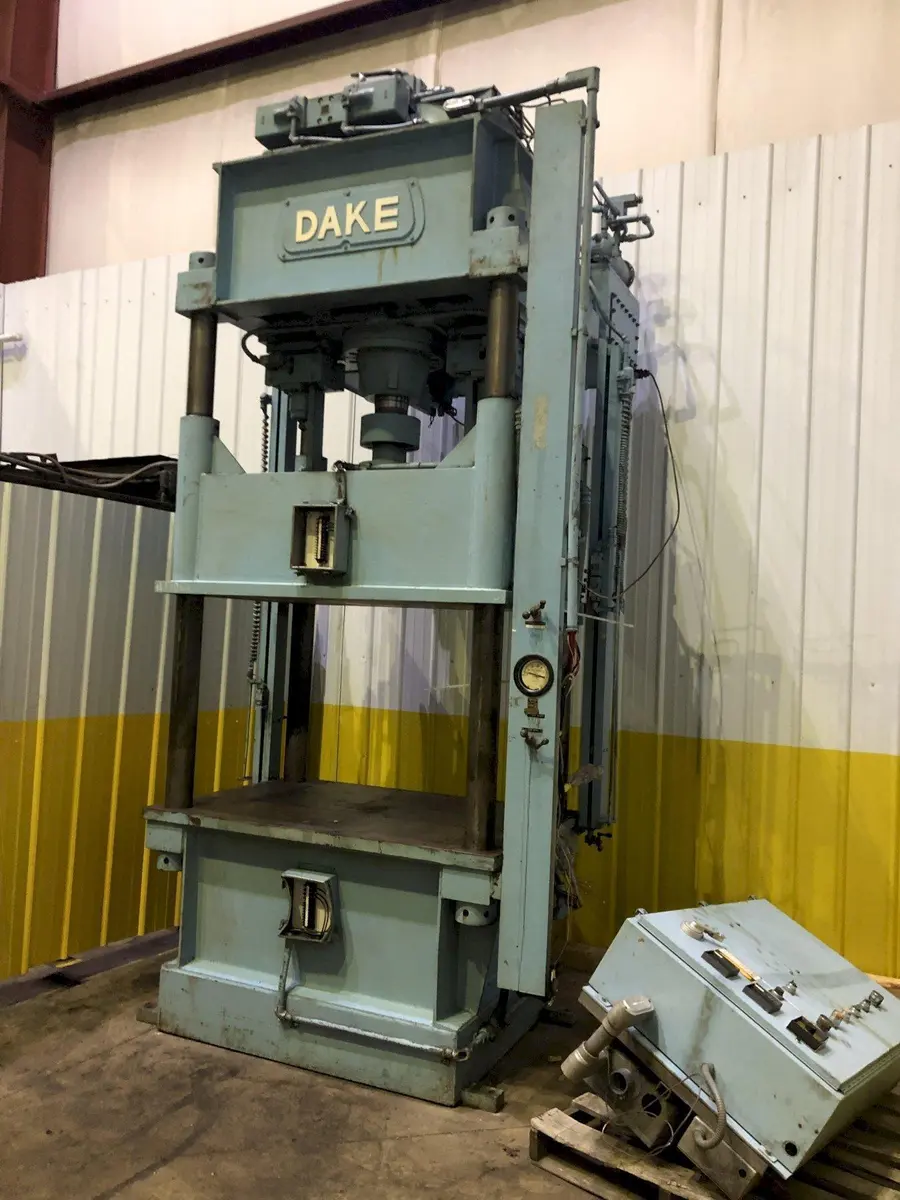

150 TON DAKE MODEL #27-777 HYDRAULIC 4-POST PRESS

Specifications:
SERIAL ..................... 177646
MODEL ...................... 27-777
YEAR NEW ................... 1980
CAPACITY ................... 150 TON
AREA OF BED ................ 63" L-R X 43" F-B
DISTANCE BETWEEN THE POST .. 50" L-R X 30" F-B
STROKE OF RAM .............. 24"
OPEN HEIGHT ................ 36"
CLOSED HEIGHT .............. 12"
POST DIAMETER .............. 4.5"
FLOOR TO BED HEIGHT ........ 36"
ADVANCE SPEED .............. 415 IPM
PRESS SPEED ................ 1 TO 14 IPM
RETURN SPEED ............... 185 IPM
OIL CAPACITY ............... 90 GALLONS
CONTROL PANEL .............. YES
MOTOR ...................... 15 HP
