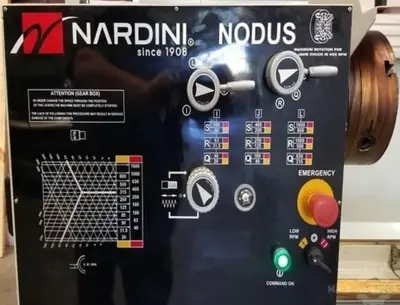

Nardini 26” x 90” Universal Engine Lathe Model Nodus ND-325 with DRO

MACHINE SPECIFICATIONS:
Machine Model ND 325x2200
Capacities METRIC SAE
Max Turing over the bed 650 mm 25,6 inch
Max Turing cross slide 475 mm 18,7 inch
Max. Turning over the carriage 600 mm 23,6 inch
Max. Turning over the gap 830 mm 32,7 inch
Gap length 180 mm 7,1 inch
Between centers Machine size D 2200 mm 86,6 inch
Upper slide travel 200 mm 7,9 inch
Cross slide travel 500 mm 19,7 inch
Tool square cross section 20 mm 0,8 inch
Bed
Bed width 270 mm 10,6 inch
Bed height 320 mm 12,6 inch
Headstock
Spindle nose L0 ASA
Spindle shaft passage diameter 46 mm 1,8 inch
Nose taper 01:20
Nose taper sleeve MT4
One range of 18 speed 20-1600 rpm
Carriage and feeds
Feed screw pitch 6,000 mm 0,236 inch
Number of selectable feed rates 48 cross /48 longitudinal
Min. Longitudinal feed 0,042 mm/rot. 0,002 inch/rot.
Max. Longitudinal feed 1,013 mm/rot. 0,040 inch/rot.
Min. cross feed 0,021 mm/rot. 0,001 inch/rot.
Max. cross feed 0,500 mm/rot. 0,020 inch/rot.
Threading
Number of selectable threads 192
Metric Threading 48 selectable 0,4-7,0 mm
Inch Threading 48 selectable 3,5-42 TPI
Diametral Pitch Threading 48 selectable 14 to 168
Module Threading 48 selectable 0,1 to 1,75
Tailstock
Quill diameter 60 mm 2,4 inch
Quill stroke 220 mm 8,7 inch
Side travel 15 mm 0,6 inch
Quill taper MT4
Motors
Headstock Motor 6 kw 8,0 hp
Coolant Pump motor 0,09 kw 0,1 hp
Machine Sizes and Weight
Machine width 1200 mm 47,2 inch
Length for Between centers size A 3700 mm 145,7 inch
Approx. weight - 1900 kg 4180 lbs
