2012 AWEA SP-3016 CNC BRIDGE TYPE VERTICAL MACHINING CENTER
Gantry Machining Centers (incld. Bridge & Double Column).jpg)
.jpg)

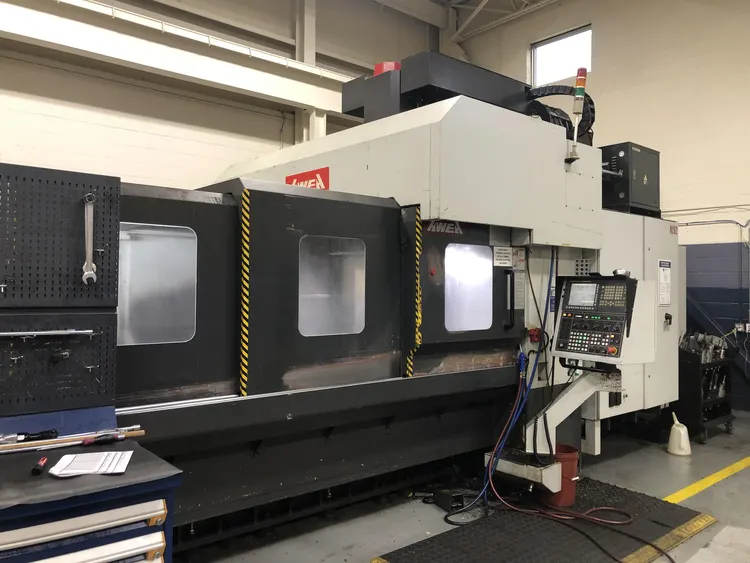

AWEA SP-3016 CNC BRIDGE TYPE VERTICAL MACHINING CENTER,
Cat 50 Taper, high pressure coolant through, New 2012
| X | 3,060 mm |
| Y | 1,600 mm |
| Z | 760 mm |
| Power | 22 kW |
| RPM | 6,000 RPM |
| Table-W | 1,500 mm |
| Table-L | 3,260 mm |
Control............................................... Fanuc 31iMB
Table Size............................................ 59" x 128"
Table Load Capacity................................... 22,000 Lbs.
Longitudinal Travel (X-Axis).......................... 120.5"
Cross Travel (Y-Axis)................................. 63.3"
Vertical Travel (Z-Axis).............................. 30"
Distance Between Columns.............................. 66.9"
Rapid Traverse Rate (X & Y-Axes)...................... 787 IPM
Tool Storage Capacity................................. 32 ATC
Spindle Horsepower (2-Speed Gearbox).................. 30 HP
Maximum Spindle Speed................................. 6000 RPM
Spindle Taper......................................... #50 CAT
Approximate Machine Weight............... 52,000 LBS
RS-232 Port, Multiple Part Program Storage,
32 Station Automatic Tool Changer, 30 HP
50 Taper Geared Spindle
Chip Conveyor
Coolant Through Spindle
Coolant Through External Tank
With High Pressure Pump
*Preliminary equipment descriptions are intended only as a guide, items of importance should be verified by the buyer-
