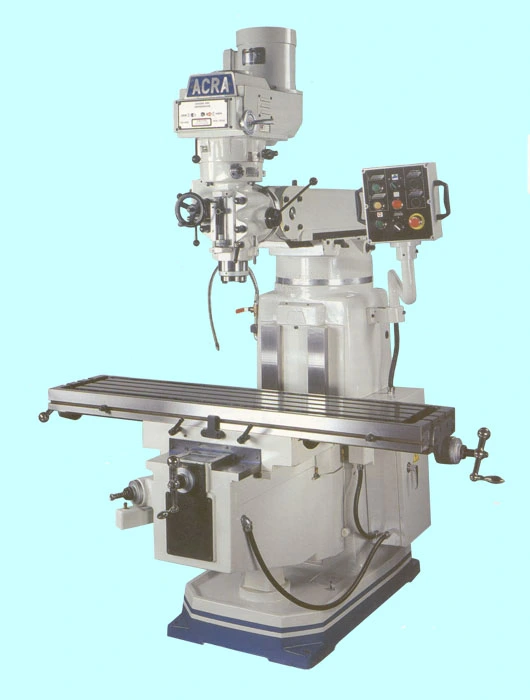

NEW 12" x 58" ACRA Model AM-5AC Vertical Knee Mill
Have one to sell?
ConditionNew
1 available
New
NEW!! 12"X58" AM5V Variable Speed Vertical Mill, AC Inverter Drive W/ Baldor Motor.
FEATURES:
AC Inverter Drive W/ Baldor Motor
Class 7 Angular Contact Bearings
Certified Meehanite Casting
Build In Power Knee
Auto Lube System
Ram Locking System U.S. Patent #4990039 Utilizing 6 T-Bolts
#40 NST STD. w/ Erickson Thread
Hand Scraped Turret-Column Ways
Square Y & Z Ways
Dust Cover For Knee And Crossfeed Ways
Precision Hardened And Ground Table With Turcite
Double Wall Column
Built-In Coolant Tank In Base
STANDARD EQUIPMENT:
Hardened & Ground Table & Ways
Double Wall Construction
Coolant System
Splash Guard
TURCITE On The X & Y Axis
Z Axis Power Rapid
Quill Heat Treat Hardened & Chromed
MADE IN TAIWAN
OPTIONS
AC Inverter Drive 440Volts $250
Quill Travel 5"
Motor 220V 1PH/3PH
Spindle Speeds (Variable) 50~5,000 RPM
Floor Space 72 1/2" x 58 1/2"
Weight 3,960 LBS
Table Size 12" x 58"
Longitudinal Travel 42"
Cross Travel 15 1/2"
Vertical Knee Travel 16"
Ram Travel 21"
Spindle Taper #40
STANDARD EQUIPMENT:
Auto Oil Lubrication
Turcite_B on X & Y Axis
AC Frequency Control Panel (5AC)
External Coolant Tank
Yaskawa Inverter (5AC)
Halogen Work light
Coolant System/Chip Tray
Rapid Knee Traverse
Forward/Reverse Switch
OPTIONAL ACCESSORIES: PRICE
6" Vise (China) W/Swivel…………………………………………………………………………… $ 250.00
6" Vise (Taiwan) W/Swivel ................................................................................................................ $ 425/500
R-8 Collet Set 12 PC (China) -AM2/AM5 .......................................................................................... $ 75.00
R-8 Collet Set (Taiwan) - AM2/AM5 ................................................................................................. $ 100.00
Clamping Kit 53 PC (China) ................................................................................................................ $ 85.00
Clamping Kit 53 PC (Taiwan) ............................................................................................................ $ 100.00
6" Rotary Table H/V … … … … … … … … … … … … … … … … … … … … … … … … … … … $ 400.00
8" Rotary Table H/V ........................................................................................................................... $ 550.00
10" Rotary Table H/V ......................................................................................................................... $ 695.00
12" Rotary Table H/V ......................................................................................................................... $ 895.00
4" Riser Block - AM2 ......................................................................................................................... $ 550.00
6" Riser Block - AM2 ......................................................................................................................... $ 650.00
8" Riser Block - AM2 ......................................................................................................................... $ 880.00
4" Riser Block – AM2, AM5 … … .................................................................................................... $ 650.00
6" Riser Block – AM2, AM5 ……….................................................................................................. $ 700.00
8" Riser Block – AM2, AM5 ………................................................................................................... $ 850.00
Maxi-Torque Power Draw Bar R-8 / #30, 40 Taper (USA) .................................................................. $ 650.00
Right Angle Milling Attachment R-8 / #30 Taper .............................................................................. $ 1,000.00
Right Angle Milling Attachment #40 Taper ....................................................................................... $ 1,300.00
Right Angle Head R8 .......................................................................................................................... $ 650.00
Right Angle Head R30 ........................................................................................................................ $ 650.00
Right Angle Head #40 ......................................................................................................................... $ 800.00
Coolant System / Chip Tray ................................................................................................................ $ 800.00
Safety Handle………………………………………………………………………………………… $ 80.00
Quick Change Tool Set (17PC) - AM2………..................................................................................... $ 350.00
Quick Change Tool Set (17PC) - AM5 .............................................................................................. $ 400.00
Precision Ground Ball Screw 1.00Dia Exchange - AM2……………………………………………. $ 3,000.00
Auto Lube Exchange ........................................................................................................................... $ 250.00
Auto Lube ........................................................................................................................................... $ 300.00
ACRA LC Series Variable speed (R8 or #30NST) ................................................................................. $ 4,000.00
ACRA Mill Head 2 H.P. 16 Speed Step Pulley (2 Speed) (R8 or #30NST) ........................................ $ 2,950.00
ACRA Mill Head 3 H.P. Variable Speed (R8 or #30NST) .................................................................. $ 3,500.00
ACRA Mill Head 5 H.P. Variable Speed (#NST40) ............................................................................ $ 4,250.00
ACRA Mill Head 3 H.P. AC Inverter Drive (R8 or #NST30) .............................................................. $ 4,250.00
ACRA Mill Head 5 H.P. AC Inverter Drive (#NST40) ........................................................................ $ 5,500.00
NST #30 Spindle Instead of R-8 Spindle (LCM/LCTM1)………………………………………………… $ 100.00
Baldor Motor…………………………………………………………………………………………... $ 650.00
(Continued)
OPTIONAL ACCESSORIES: PRICE
Acu-Rite 2-Axis 203...……………………………………………………………………………... $ 1,950.00
Acu-Rite 2-Axis 303...……………………………………………………………………………... $ 2,400.00
Newall 2-Axis D.R.O. DP700…………………………………………………………………………. $ 1,750.00
Newall 2-Axis D.R.O. NMS300………………………………………………………………………... $ 1,000.00
Sony 2-Axis D.R.O. MILLMAN………………………………………………………………………... $ 1,500.00
Mitutoyo 2-Axis D.R.O KA-200………………………………………………………………………….. $ 1,490.00
Installation For 2-Axis D.R.O…………………………………………………………………………... $ 200.00
Acu-Rite 3-Axis 203...……………………………………………………………………………. $ 2,650.00
Acu-Rite 3-Axis 303...……………………………………………………………………………. $ 3,000.00
Newall 3-Axis D.R.O. DP700………………………………………………………………………… $ 2,300.00
Newall 3-Axis D.R.O. NMS300………………………………………………………………………... $ 1,300.00
Sony 3-Axis D.R.O. MILLMAN………………………………………………………………………. $ 2,250.00
Mitutoyo 3-Axis D.R.O KA-200………………………………………………………………………….. $ 2,200.00
Installation For 3-Axis D.R.O…………………………………………………………………………... $ 250.00
Power Feed X Axis Align……………………………………………………………………………… $ 375.00
Power Feed Y Axis Align……………………………………………………………………………… $ 450.00
Power Feed Z Axis Align……………………………………………………………………………… $ 450.00
Power Feed X Axis 140 Servo (USA)…………………………………………………………………. $ 800.00
Power Feed Y Axis 140 Servo (USA)…………………………………………………………………. $ 975.00
Power Feed X Axis 150 Servo (USA)…………………………………………………………………. $ 900.00
Power Feed Y Axis 150 Servo (USA)…………………………………………………………………. $ 1,080.00
Power Feed Z Axis (140 Only) Servo (USA)…………………………………………………………... $ 1,000.00
