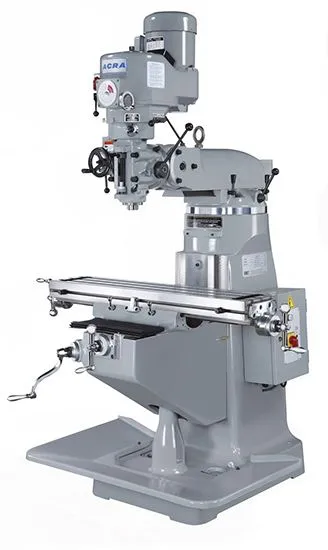

ACRA LCM 42 Vertical Mill, 9" x 42" Table, 3 Hp

Made in Taiwan
Quill Heat Treat Hardened & Chromed
Chrome Way
Spindle: R8
Made from one piece of Ni-Cr alloy steel.
Supported by two precision angular contact and one ball bearing to ensure rigidity.
Inner Taper was hardened and ground.
Inner taper runout keeps within 0.002mm.
Adjustable Backlash Nut:

Unique double nuts and backlash adjusting design, contact face enlarged ensuring accuracy over long term and easy for backlash adjustment.
Milling Head Gear & Quill:

Hardened & ground spindle, quiet and smooth, free of noise vibration.
Use dynamically balanced pulleys and precision bearings.
Spindle back gear running in grease packed housing ensures fatigue strength and low noise.
Quill Heat Treat Hardened & Chromed.
Rigid Head Tilting System:

The head knuckle is our design patent. This structure increases the stability and rigidity, when vertical head is tilted at all angles, front and back to perform complicated work.
There are T-Bolts to lock the knuckle to Ram instead of 3 bolts

OPTIONAL ACCESSORIES: PRICE
6" Vise (China) W/Swivel………………………………………………………………… $ 300.00
6" Vise (Taiwan) W/Swivel ................................................................ $ 550/700
R-8 Collet Set 12 PC (China) -AM2/AM5 ............................................ $ 100.00
R-8 Collet Set (Taiwan) - AM2/AM5 .................................................. $ 125.00
Clamping Kit 53 PC (China) ................................................................. $ 100.00
Clamping Kit 53 PC (Taiwan) .............................................................. $ 125.00
6" Rotary Table H/V … … … … … … … … … … … … … … … … … … … … … $ 450.00
8" Rotary Table H/V .............................................................................. $ 600.00
10" Rotary Table H/V ............................................................................ $ 750.00
12" Rotary Table H/V ............................................................................ $ 900.00
4" Riser Block – LCM-50 ..................................................................... $ 700.00
6" Riser Block – LCM-50 ................................................................. $ 750.00
4” Riser Block LCTM 1,2,3 ..................................................................... $ 750.00
6” Riser Block LCTM 1,2,3 .................................................................... $ 850.00
4" Riser Block – AM2, AM5 …….............................................................. $ 700.00
6" Riser Block – AM2, AM5 ……….......................................................... $ 750.00
8" Riser Block – AM2, AM5 ………............................................................ $ 850.00
Maxi-Torque Power Draw Bar R-8 / #30, 40 Taper (USA) ................... $ 700.00
Right Angle Milling Attachment R-8 / #30 Taper ................................. $ 1,100.00
Right Angle Milling Attachment #40 Taper ............................................ $ 1,450.00
Right Angle Head R8 ............................................................................. $ 750.00
Right Angle Head R30 ............................................................................... $ 750.00
Right Angle Head #40 ............................................................................. $ 900.00
Coolant System / Chip Tray .................................................................... $ 850.00
Safety Handle………………………………………………………………………………………… $ 90.00
Quick Change Tool Set (17PC) - AM2………............................................... $ 350.00
Quick Change Tool Set (17PC) - AM5 ..................................................... $ 400.00
Auto Lube Exchange ................................................................................. $ 300.00
Auto Lube ................................................................................................. $ 400.00
ACRA LC Series Variable speed (R8 or #30NST) ....................................... $ 5,000.00
ACRA Mill Head 2 H.P. 16 Speed Step Pulley (2 Speed) (R8 or #30NST) ....... $ 3,500.00
ACRA Mill Head 3 H.P. Variable Speed (R8 or #30NST) ............................. $ 4,500.00
ACRA Mill Head 3 H.P. AC Inverter Drive (R8 or #NST30) ......................... $ 5,500.00
NST #30 Spindle Instead of R-8 Spindle (LCM/LCTM1)……………………………… $ 250.00
Baldor Motor…………………………………………………………………………………………... $ 650.00

Acu-Rite 2-Axis 203...……………………………………………………………………... $ 2,400.00
Acu-Rite 2-Axis 303...……………………………………………………………………... $ 2,900.00
Newall 2-Axis D.R.O. DP700…………………………………………………………. $ 1,750.00
Newall 2-Axis D.R.O. NMS300……………………………………………………... $ 1,200.00
Sony 2-Axis D.R.O. MILLMAN………………………………………………………... $ P.O.R.
Mitutoyo 2-Axis D.R.O KA-200……………………………………………………….. $ P.O.R.
Installation For 2-Axis D.R.O…………………………………………………………... $ 250.00
Acu-Rite 3-Axis 203...……………………………………………………………………. $ 3,200.00
Acu-Rite 3-Axis 303...……………………………………………………………………. $ 3,600.00
Newall 3-Axis D.R.O. DP700…………………………………………………… … $ 2,300.00
Newall 3-Axis D.R.O. NMS300……………………………………………………... $ 1,600.00
Sony 3-Axis D.R.O. MILLMAN……………………………………………………………. $ P.O.R.
Mitutoyo 3-Axis D.R.O KA-200………………………………………………………….. $ P.O.R.
Installation For 3-Axis D.R.O……………………………………………………………... $ 300.00
Power Feed X Axis Align…………………………………………………………………… $ 450.00
Power Feed Y Axis Align…………………………………………………………………… $ 550.00
Power Feed Z Axis Align…………………………………………………………………… $ 550.00
Power Feed X Axis 140 Servo (USA)……………………………………………………. $ P.O.R.
Power Feed Y Axis 140 Servo (USA)……………………………………………………. $ P.O.R.
Power Feed X Axis 150 Servo (USA)……………………………………………………. $ P.O.R.
Power Feed Y Axis 150 Servo (USA)……………………………………………………. $ P.O.R.
Power Feed Z Axis (140 Only) Servo (USA)………………………………………... $ P.O.R.
