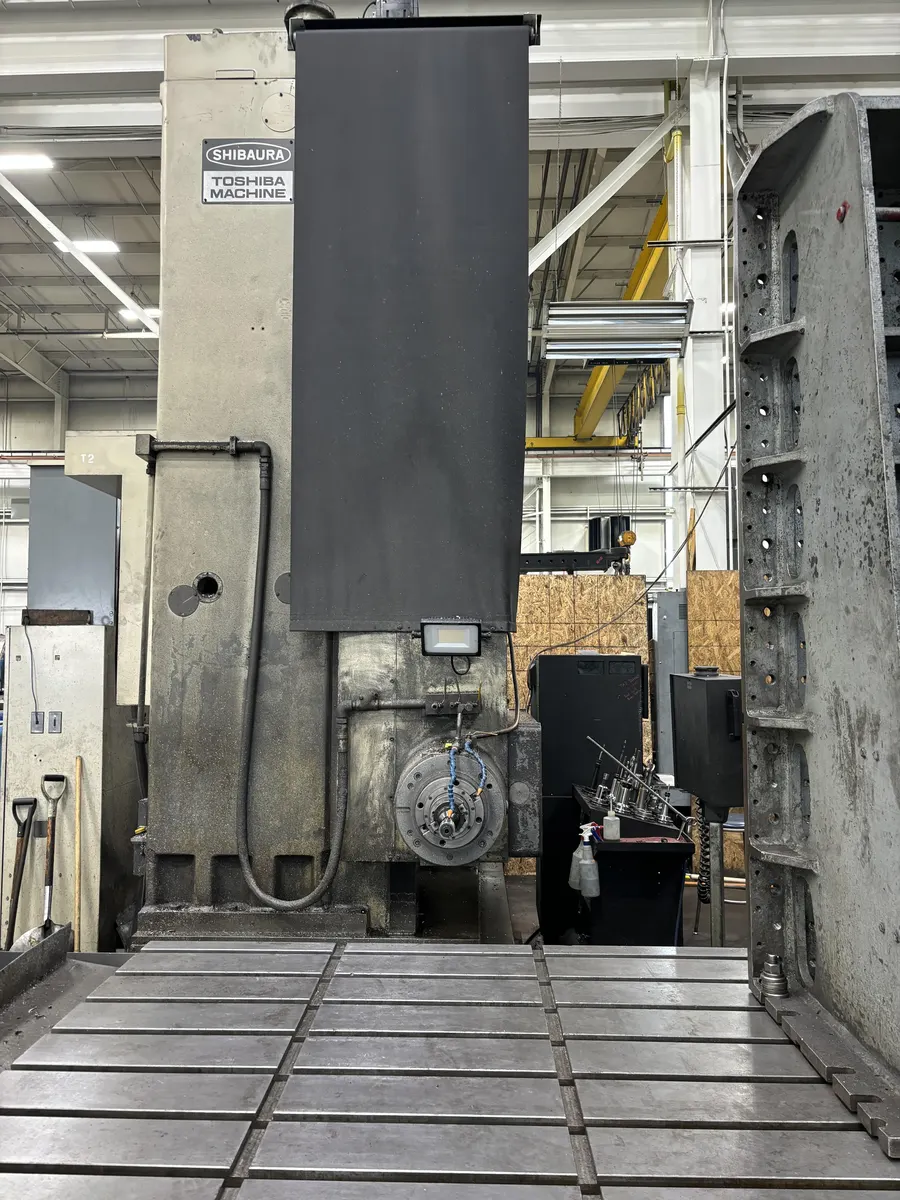

Toshiba BP-13B-P7 PLAIN TABLE TYPE CNC HORIZONTAL BORING MILL
Horizontal Planer Type Boring Mills
5.12" Toshiba BP-13B-P7 PLAIN TABLE TYPE CNC HORIZONTAL BORING MILL, 50 Taper, Mitsubishi 70 Series (Retrofit) 60" x 168" Table, Angle Plates
| Spindle Size | 5.12" |
| Control | CNC (Mitsubishi 70 Series) |
Control.................................: Mitsubishi 70 Series (Retrofit)
Spindle Diameter........................: 5.12"
Table Size..............................: 60" x 168"
X Travel................................: 157"
Y Travel................................: 87"
Z Travel Column In/Out..................: 60"
W Axis Spindle Travel...................: 27"
Spindle Speeds..........................: 2,500 RPM
Spindle Taper...........................: # 50
Max. Table Load.........................: 33,000 Lbs.
Machine Weight..........................: 65,000 Lbs.
Mitsubishi 70 Series Control
All new Mitsubishi Spindle Motor & Drives
Glass Scales X & Y
20gig Hard Drive
High Speed Machining
Telescoping Stainless Steel Way Covers
Toshiba Hardened and Ground Large Flat Ways
Coolant
(2) 70" x 36" Angle Plates
