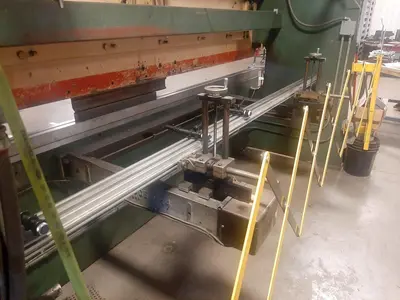

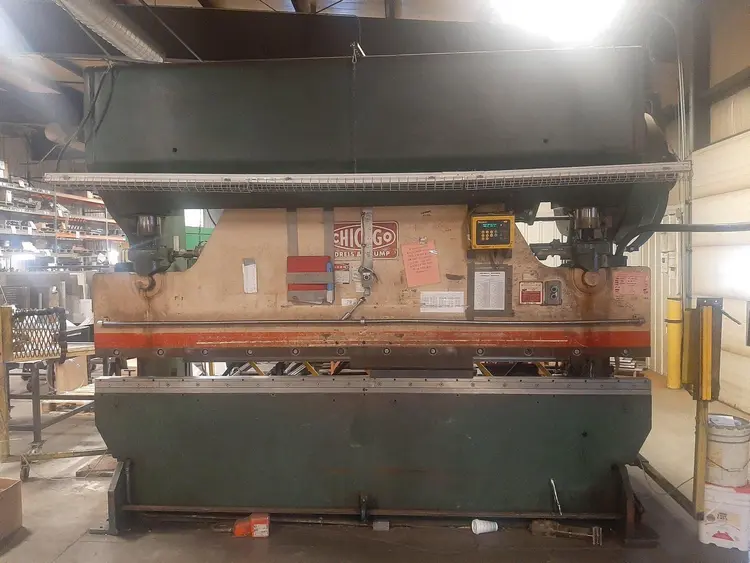

CHICAGO DREIS & KRUMP 1012M

MODEL.................................... 1012M
SERIAL NUMBER............................ L-17781
AGE (YEAR) APPROX........................ 1970
CAPACITY NEAR BOTTOM STROKE.............. 120 TON
MIDSTROKE................................ 80 TON
RATED BENDING CAPACITY................... 6' X 1/4"
10' X 3/16"
12' X 10 GA.
OVERALL LENGTH OF BED AND RAM............ 12'
DISTANCE BETWEEN HOUSINGS................ 10'6"
STROKE................................... 3"
POWER RAM ADJUSTMENT..................... 5"
DIE SPACE................................ 12"
MAX. CLOSED.............................. 4"
THROAT DEPTH............................. 8"
BED HEIGHT FROM FLOOR.................... 34-1/2"
SPEED.................................... 35 SPM
DIMENSIONS............................... 15' W X 8'4" D X 9'10" H
APPROXIMATE WEIGHT....................... 20,000 LBS
