12-Stand DAHLSTROM Model 400-12 Roll Former
Have one to sell?
ConditionUsed
1 available

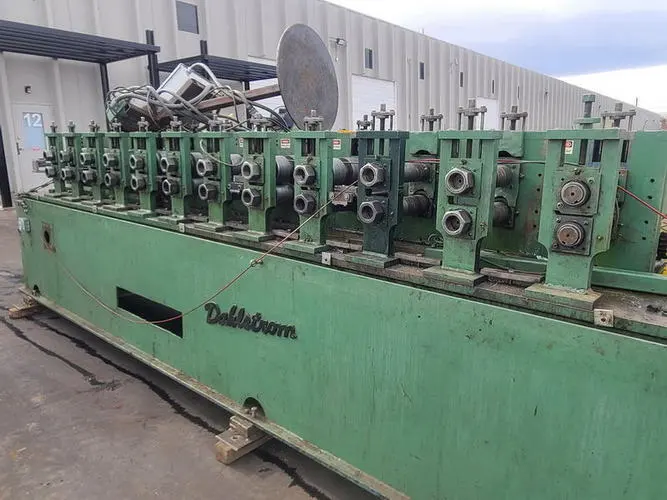

12-Stand DAHLSTROM Model 400-12 Roll Former, 12-Stand on a 16-Stand Base, 2" Spindles, 8" Roll Space, 60-100 FPM
12-Stand on a 16-Stand Base
Spindle Diameter: 2"
Roll Space: 8"
Horizontal: 13"
Vertical: 4-1/2" to 7-1/2"
Keyway: 3/8"
Base to Centerline: 7-3/8"
Speed: 60 to 100 FPM
Roll Diameter: 8"
Line Direction: Right-to-Left
Yaskawa Vari-Speed Drive with Full Length Control
E-Stop Safety Cable
Exit Straightener Base With 3-Axes Of Adjustment
Thread Jog Switch
End of Coil Stop Switch
MOTOR DATA: 15 HP, 240/480/60/3
OVERALL DIMENSIONS: 256" x 72" x 60" High
WEIGHT: 12,000 Lbs.
CONDITION: As Taken From Service
