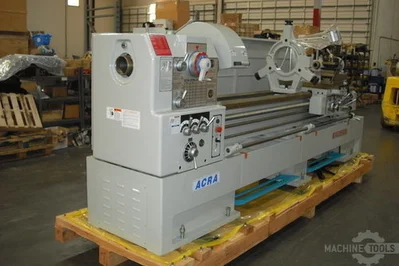

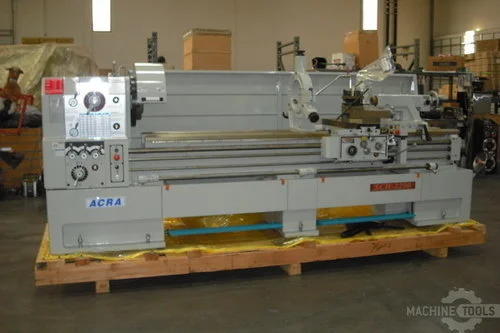

ACRA 2290 SCH ENGINE LATHE

Swing over Bed 22" (560 mm)
Swing over Gap 31.37" (797 mm)
Swing over Cross Slide 13.38" (340 mm)
Bed Width 15.75" (400 mm)
Between Centers 90" (2300 mm)
Spindle Nose D1-11
Spindle Bore 4.094" (104 mm)
Spindle Speeds - 60 Hz 13, 20, 30, 47, 70, 105, 150, 230, 340, 530, 800, 1200 RPM
Variable Speed is available as Option (adds $6,000)
Travel:
Cross Slide 15.75" (400 mm)
Compound Slide 8.98" (228 mm)
Threads:
Leadscrew Diameter and Pitch 1.77" (45 mm) dia. x 4 TPI or 6mm Pitch
Whitworth threads Range of Inch Threads 44 kinds - 2-72 TPI
Range of Metric Threads 39 kinds - 0.2 - 14 Pitch
Longitudinal Feed mm 0.035 - 0.98 inch/rev. (0.0012 - 0.039")
Cross Feeds mm 0.011 - 0.296 inch/rev. (0.0004 - 0.0117")
Tail Stock
Quill Diameter mm 80 inch (3.15")
Quill Travel mm 250 inch (10")
Taper of Center MT No.5
Motor
Spindle Motor 15 HP (10.5 Kw)
Coolant 1/8 HP
Dimension
Length 122" (3200 mm)
Height 67" (1700 mm)
Width 46" (1150 mm)
Net Weight 7,854 lbs.
