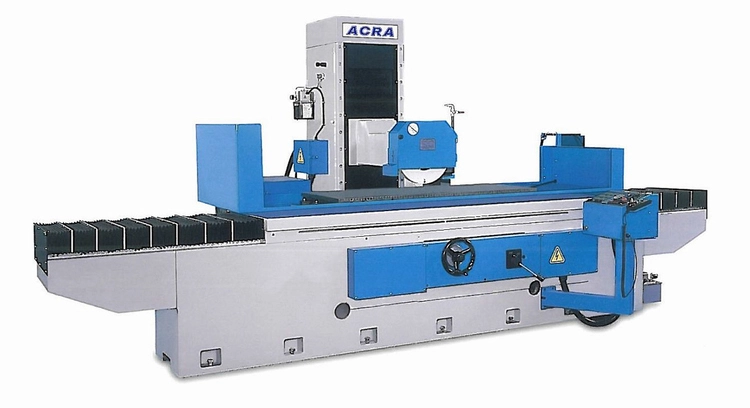

ACRA 2040HSR FULLY AUTO 3 AXIS SURFACE GRINDER - REGENT SERIES
Have one to sell?
ConditionNew
New
20" x 40" ACRA REGENT SERIES 2040HSR FULLY AUTO 3 AXIS SURFACE GRINDER - 3 Axis NC Control
Series: 2440HSR
Working Surface: 24” x 40”
Table Travel: 26” x 45”
Grinding Wheel: 16” x 2” x 5”
Center Height: 24"
Wheel RPM: 1,750
Main Motor: 10 HP
Voltage: 230/460V AC ~3 PH
Dimensions: 148”x90”x90”
Weight: #15,000 Lbs
STANDARD EQUIPMENT:
Grinding Wheel
Wheel Balancing Arbor
Wheel Flange
Flange Extractor
Diamond Wheel Dresser
Electromagnetic Chuck
Chuck Controller
NC Parallel Dresser
Leveling Screws & Plates
NC Computer Control
Halogen Light
Coolant System
OPTIONAL ACCESSORIES:
Kanetsu Electromagnetic Chuck
Coolant System with Magnetic Separator
Coolant System with Paper Filter
Auto Paper Strip Filter with Magnetic Separator Coolant System
Dust Suction System
NC Parallel Dressing & Compensation Device(Includes Auto Down Feed System)
Auto Crossing Stroke Adjustment (Setting the Cross Distance from Control Panel)
Auto Down Feed System AD5 (NC)
Parallel Dresser (Manual)
Parallel Dresser (Hydraulic)
Crisscross Grinding
Back Water Splash Shield (Includes Auto Crossing Stroke Adjustment)
Semi-Enclosed Splash Shield
Acu-Rite, Newall, Sony, Fagor, Mitutoyo Digital Read-Outs
