Cincinnati 230ASX8 Hydraulic Press Brake
Have one to sell?
ConditionUsed
1 available

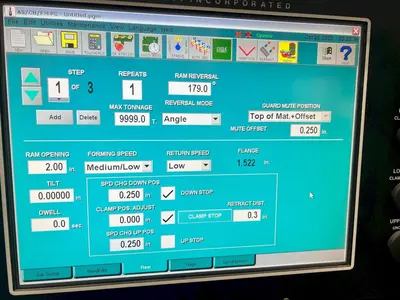

230 Ton x 10' Cincinnati 230ASX8 Hydraulic Press Brake, Cincinnati 4 - AxisTouch
Screen CNC Controller, Automatic Hydraulic Crowning in Bed, 40” Independent Travel Backgauge w/ Manual R - Axis, (2) Portable Palm Stations, Power Ram Tilt, (2) Portable Foot Pedals, Tonnage Control, Stroke Speed Control, Sectionalized Ram Clamps, (4) Backgauge Fingers, (2) Front Support Arms, Full Length Die Holder and Link Lite Black Max Lite Curtains.
Tonnage: 230 Tons
Bending Length: 10’
Throat Depth: 8”
Open Height: 17”
Closed Height: 7”
High Ram Speed: 205 IPM
Medium Ram Speed: 56 IPM
Slow Ram Speed: 15 IPM
Return Speed: 212 IPM
Main Motor: 35 HP
Oil Tank Capacity: 125 Gallons
Voltage: 220 / 440V 3 Phase (Wired for 440V)
Dimensions: 165” X 70” X w/o Backgauge 103”, w/ Backgauge 127”
Weight: 25,000 Lbs
Cincinnati 4 - AxisTouch Screen CNC Controller, Automatic Hydraulic
Crowning in Bed, 40” Independent Travel Backgauge w/ Manual R - Axis, (2) Portable
Palm Stations, Power Ram Tilt, (2) Portable Foot Pedals, Tonnage Control, Stroke Speed
Control, Sectionalized Ram Clamps, (4) Backgauge Fingers, (2) Front Support Arms, Full
Length Die Holder and Link Lite Black Max Lite Curtains.
***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
