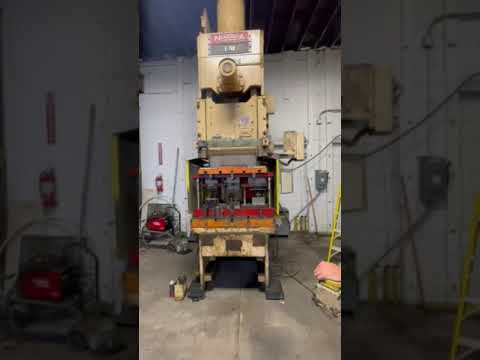

NIAGARA 110 TON BACK GEARED PRESS
Have one to sell?
ConditionUsed
1 available
110 TON NIAGARA MODEL E-110 TON BACK GEARED PRESS, 5" STR, 23" SH, 35-70 SPM
CATALOG SPECS:
CAPACITY: 110 TON
STROKE: 5"
SHUT HEIGHT TO BED: 23" SDAU
BED AREA: 39" RL X 25" FB
RAM ADJUSTMENT: 5" (MOTORIZED)
SPEED: 35-70 SPM
Bed area 42" LR x 27" FB
RAM AREA: 34" RL X 23" FB
DIST BETWEEN UPRIGHTS 22"
FLOOR TO BED 32.5"
APPROX DIMENSIONS: 140' H X 52' RL X 90' FB
APPROX WEIGHT: 15,000 LBS.
BACK GEARED DESIGN
STEEL FRAME CONSTRUCTION
AIR COUNTERBALANCED RAM
OIL LUBRICATION SYSTEM
FLOOR STANDING BASE
PALM BUTTONS
*Preliminary equipment descriptions are intended only as a guide, items of importance should be verified by the buyer-
110 TON NIAGARA MODEL E-110 TON BACK GEARED PRESS, 5" STR, 23" SH, 35-70 SPM
Imperial
| Tonnage | 110 T |
| Stroke | 5" |
| Shut Height | 23" |
| Bed W | 42" |
| Bed L | 27" |
| SPM | 35 strokes/min. |
| Air Clutch (Yes/No) | Yes |
| Type (BG, Double Action, FW) | Backgeared |
| Crank (Single/Double) | Single |
| Dimensions | 52' RL X 90' FB 140"HX |
| Weight | 15,000 LBS. |
CATALOG SPECS:
CAPACITY: 110 TON
STROKE: 5"
SHUT HEIGHT TO BED: 23" SDAU
BED AREA: 39" RL X 25" FB
RAM ADJUSTMENT: 5" (MOTORIZED)
SPEED: 35-70 SPM
Bed area 42" LR x 27" FB
RAM AREA: 34" RL X 23" FB
DIST BETWEEN UPRIGHTS 22"
FLOOR TO BED 32.5"
APPROX DIMENSIONS: 140' H X 52' RL X 90' FB
APPROX WEIGHT: 15,000 LBS.
BACK GEARED DESIGN
STEEL FRAME CONSTRUCTION
AIR COUNTERBALANCED RAM
OIL LUBRICATION SYSTEM
FLOOR STANDING BASE
PALM BUTTONS
*Preliminary equipment descriptions are intended only as a guide, items of importance should be verified by the buyer-
