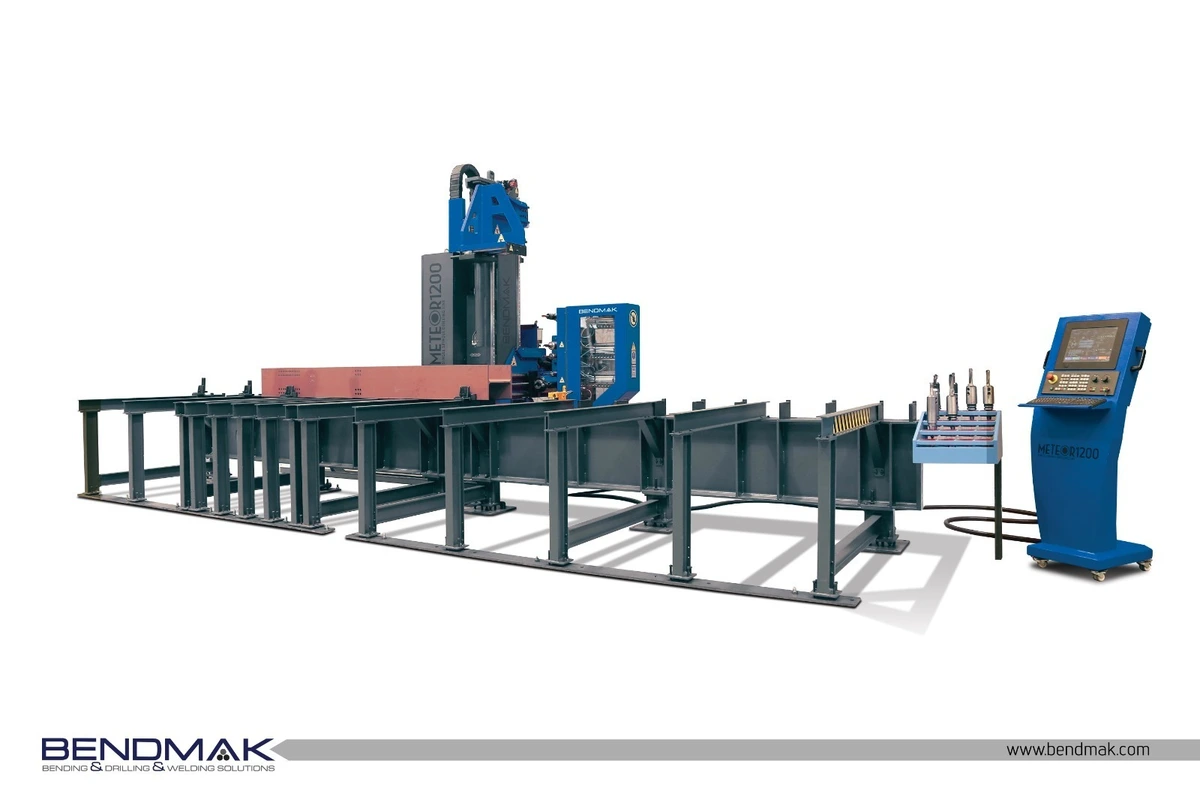

New BENDMAK B1DL 1200 06M AUTOMATIC CNC DRILLING & SAWING LINE

Controller: Siemens
Drilling Unit: 1
Spindle Head Tool Shafts Hole: BT40
Working Length: 60'
Profile Height: 2” - 47”
Profile Width: 2” - 47”
Support Table Height: 47”
Sub-Axis Working Width: 10"
Max. Tool Length: 11.8”
Tapping: M12 - M20
Drilling Capacity: 0.4” - 1.25” tool w/ Replaceable Carbide Head
RPM: 10 - 1500
Spindle Power: 20 HP
Tool Changer Positions: 6

BENDMAK BDL SINGLE SPINDLE 1200 PLC Beam Drilling, Lines handle material up to 1200mm (47”) wide by 1200mm (47”) high.

BENDMAK BDL-1200 is developed to drill any kind of profile by rotating the beam. The tight tolerance between the holes is not a matter anymore since day by day steel producers needs more accurate manufacturing and assembling in shorter time. The time is many so BDL-1200 is ready to reduce your labor either for drilling or for on-site assembly.
BDL-1200 is ready to drill beams, angles, flat sheets and any suitable geometry. You can also mill slots, pockets and any geometry by having state of arts control system.

BDL-1200 gives you advantages;
Affordable investment
Optimum price/quality ratio
Highest driving Powers in the market
11 kw spindle power
High positioning tolerance and repeatability
Very robust design
Worldwide spare parts availability
Easy to operate, high versatility
User friendly control system
Reduced size of overall dimensions
Speedy, accurate and free of maintenance
Heavy duty usage
Great flexibility
