60" x .105" ROWE MODEL FST-AC-3-60 / 20060 DSV SPACE SAVER COIL FEED LINE

Rowe Space Saver Complete Coil Feed Line Specifications:
Coil weight capacity: 20,000 Lbs.
Coil width capacity: 60"
Stock thickness capacity: .105" x 60" Wide
Stock thickness capacity: .187" x 20" Wide
Expansion range: 18" - 22"
Coil OD capacity: 60"

Rowe Space Saver Complete Coil feed Line Equipment and Features:

Rowe Coil Reel Uncoiler Model No.: 20060N-DSV
Four leaf mandrel coil reel
Powered coil reel mandrel expansion
Heavy duty wedge type coil reel expansion
Adjustable coil reel keeper arms
Coil hold down arm w/motorized end wheel
Self contained hydraulic unit
Motorized coil reel payout
Variable frequency coil reel drive and control system
Ultrasonic variable speed loop control
Operator's control station

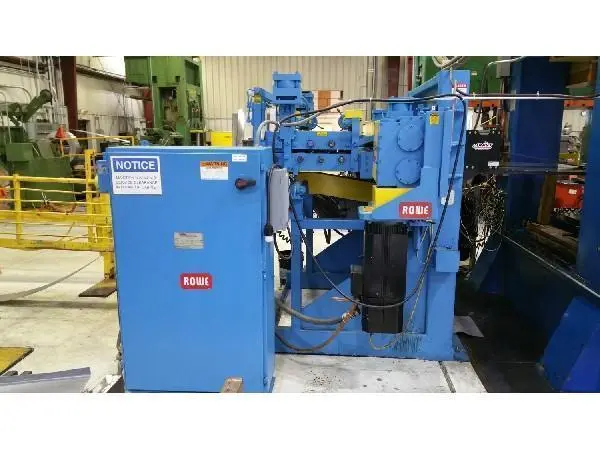

Rowe Servo Feeder Straightener Combination Press Feed Model No.: FST-AC-3-60
Upper and lower servo feed rolls x six inch diameter
Air operated upper servo feed roll lift and pilot
Coil straightening rolls (5) x 4.5 inch diameter
Air operated upper coil straightening roll bank pilot lift
Powered coil straightener pinch rolls for stock threading
Entry cascade loop support rollers
Adjustable stock width edge guides (three roll design)
Adjustable pass line
Motorized pass line adjustment
AC Servo roll feed drive and control package
Operator's interface and control station
