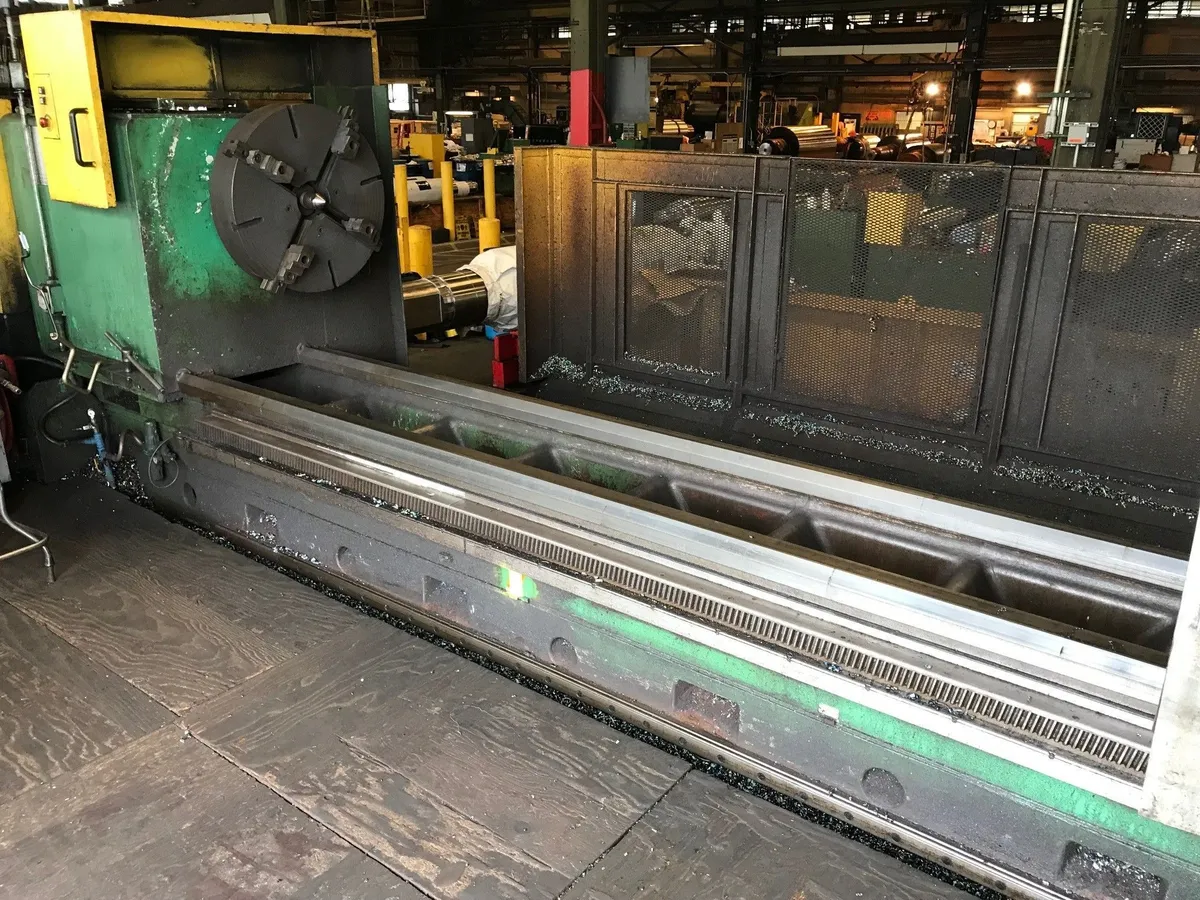

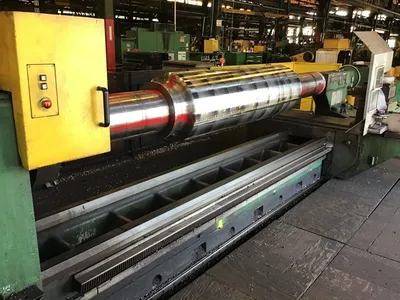

Wohlenberg Model: PT-1-1250 II CNC Lathe
Have one to sell?
ConditionUsed
1 available
51" x 209" Wohlenberg Model: PT-1-1250 II CNC Lathe, Sinumerik 820T Control, 1996, 3.55-710 RPM, 35" OCS,
MACHINE TYPE: LATHE, 2 CNC CONTROLLED AXES (X, Z)
I CNC SPINDLE WITH SPEED INDICATOR

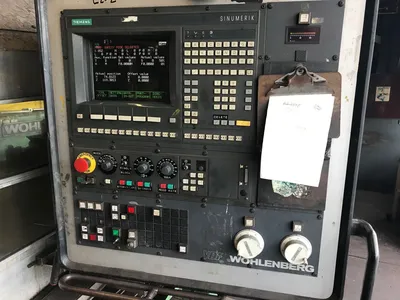

CONTROL TYPE: SINUMERIK 820T
MODEL NUMBER: PT 1 1250 II
SERIAL NUMBER: D 4492
HORSEPOWER: 80
SPEED RANGE: A RANGE (LOW) 3.55 TO 180 RPM
B RANGE (HIGH) 14 TO 710 RPM
THREADING CAPABILITIES: CNC CONTROL
FEED RANGE: .0039 TO 236.22 IPM
FEED OVERRIDE RATE: 236.22 IPM
RAPID TRAVERSE RATE: "X" AXIS: 236.22 IPM
"Z" AXIS: 236.22 IPM
MAXIMUM LENGTH OF PART: 209 CUTTING ON RIGHT SIDE OF TURRET
203 CUTTING ON LEFT SIDE OF TURRET
CHUCK CAPACITY: 4" WITHOUT CENTER IN, 4" WITH CENTER IN
16'/4" MAX WITH JAW COMPLETELY IN HOUSING 0
JAW SLIDES 7" LONG CAN BE EXTENDED 2 3/8" PAST
CHUCK HOUSING 21.5" MAX CHUCK CAPACITY
MAXIMUM DIAMETER OVER WAYS: 51.57 INCHES
MAXIMUM DIAMETER OVER CROSS SLIDE: 35.433"
CUTTING DIAMETER: 35.433"
DISTANCE THAT TOOL CAN APPROACH CHUCK: 12"
SIDE OF TURRET GUARD: 9 YZ"
SIDE OF TURRET JAWS: 10"
MAXIMUM ROLL WEIGHT BETWEEN CENTERS: 17,640 LBS
MAXIMUM PART WEIGHT IN CHUCK ONLY: 5,512 LBS.
COOLANT CAPACITY: 150 GALLONS (ESTIMATED)
TOOLING: SQUARE TURRET WITH 4 POSITIONS SAUTER TURRET WITH SAUTER
WEIGHT OF MACHINE: 44,000 LBS.
HEADSTOCK CENTER TAPER: MK6 (METRIC)

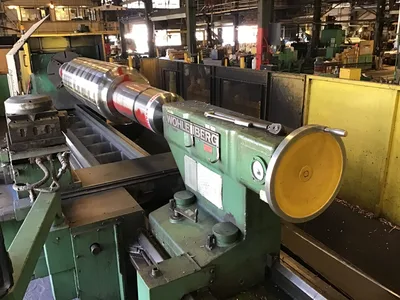

TAILSTOCK CENTER TAPER: RATIO 1:4
FACE PLATE: SHORT NOSED ADAPTER
***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
