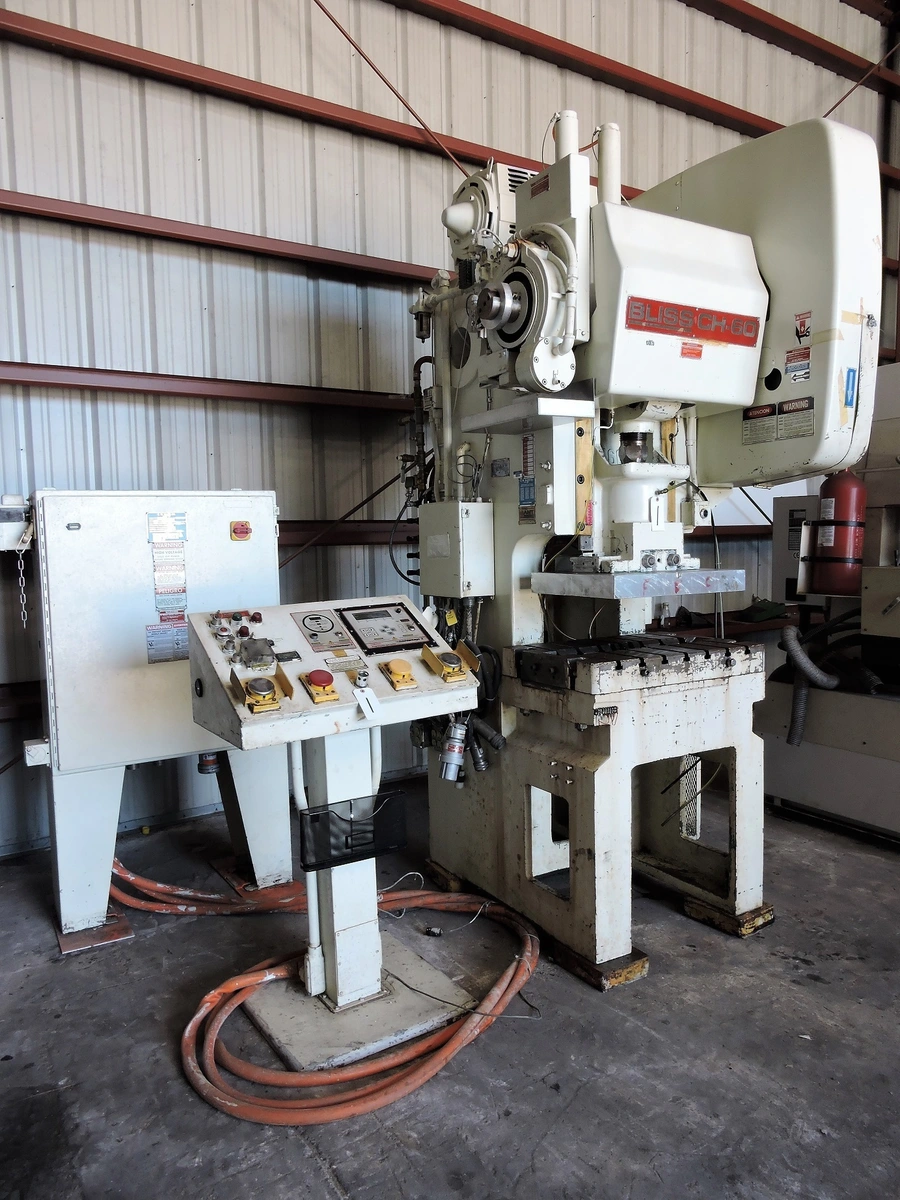

BLISS CH-60 C- FRAME PUNCH PRESS, HIGH SPEED MODEL CH60
Have one to sell?
$24,500.00 USD
ConditionUsed
1 available
60 TON BLISS CH-60 HIGH SPEED C- FRAME PUNCH PRESS, 2" STROKE, 15 " SHUT HEIGHT, 250-500 SPM
CAPACITY 60 TONS
STROKE 2”
SPEED 250 – 500 STROKES PER MINUTE
SHUT HEIGHT, BED TO SLIDE (STROKE UP, ADJ. DOWN) 15” ON BED
ADJUSTMENT OF SLIDE 3”
SLIDE AREA 17” (L-R) x 12” (F-B)
BED AREA 32” x 21”
OPENING THRU THE BED 7” x 12”
OPENING THRU FRAME 15”
THROAT DEPTH, CENTER OF SLIDE TO FRAME 12”
MOTOR 15 H.P. /440/3PH/60cy (VARIABLE SPEED)
WEIGHT 12,500 LBS. APPROX.
AIR CLUTCH/AIR BRAKE/AIR COUNTER BALANCE, BOLSTER PLATE 4”, CENTRAL LUBE, FLYWHEEL GUARDS & ELECTRICAL/PNEUMATIC CONTROLS
***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
