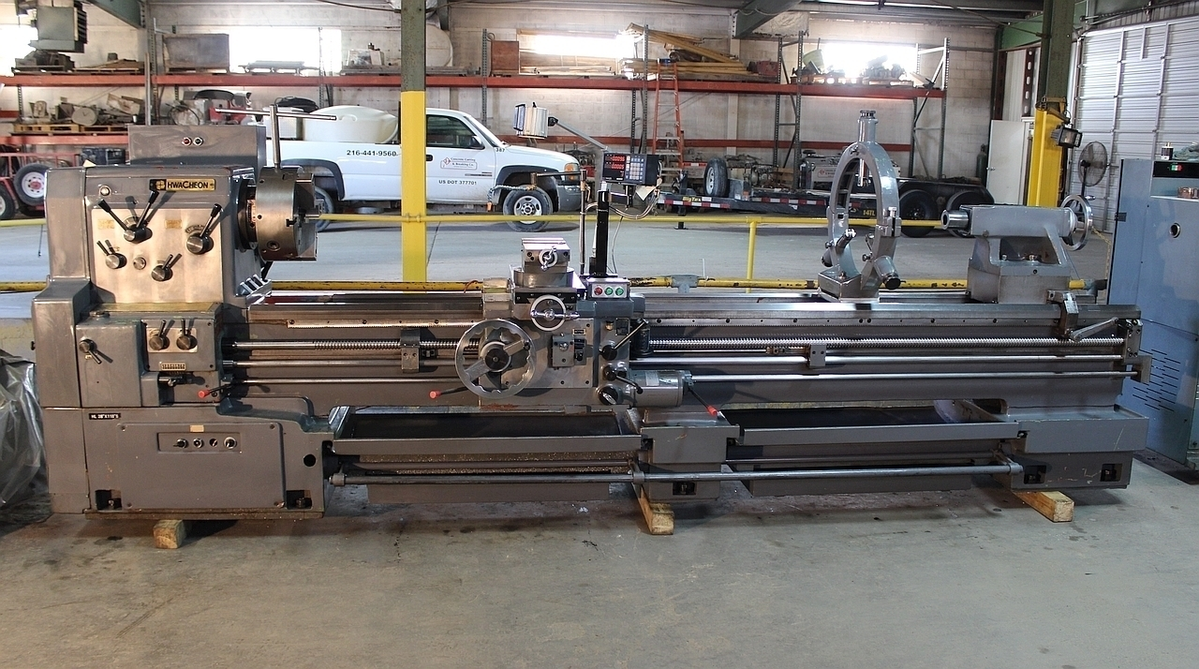

28" x 118" Whacheon Engine Lathe HL720

SWING 28.3"
CENTERS 120"
SPINDLE BORE 3"
POWER 15 hp
RPM 1,205 RPM
SWING OVER CROSS SLIDE 19.7"
YEAR of MFG; 1999
Model HL 720

Capacity:
Swing Over Bed......................................... 28.34"
Swing Over Cross Slide.............................18.50"
Swing Over Gap.........................................Non Gap
Distance Between Centers.......................118.11"
Spindle:
Spindle Nose.............................................A-8"
Spindle Bore..............................................3.03"
Taper Of Spindle Bore...............................MT No.7
Taper Of Center..........................................MT No.5
Range Of Spindle Speeds (12)...................27-1,205 RPM
Carriage:
No. Of Feed Changes..................................40 Step
Longitudinal Feed (Z-Axis).........................0.0015"~0.0216 IPR
Cross Feed (X-Axis)....................................0.0016~0.0228 IPR
Cross Slide Travel.......................................13.35"
Compound Rest Travel...............................6.69"
Bite Holder Size..........................................1.25"x1.25"
Threads:
Lead Screw (Dia. x Pitch)...........................1.57" x 0.47"
Inch Threads................................................56~2 TPI
Metric Threads.............................................0.0196"~0.55"
D.P. Threads..................................................1~7 MP
Tail Stock:
Spindle Travel...............................................5.90"
Taper Of Center.............................................MT No. 5
Bed:
Width Of Bed..................................................20.07"
Length Of Bed................................................175.27"
Motor:
Main Spidle Motor..........................................15 HP
Coolant Pump Motor......................................0.13 HP
Tank Capacity:
Coolant............................................................200 Gal.
Machine Size:
Dimension (L x W x H)....................................186.22" x 60.78" x 57.75"
Net Weight.......................................................10,185.35 Lbs.
