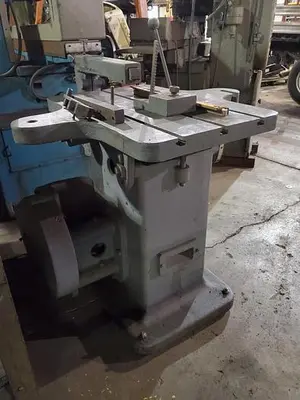

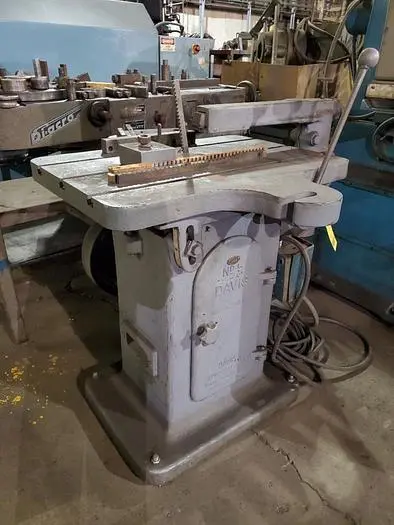

DAVIS NO. 5 KEYSEATER, 30-3/4" X 20-1/2" TABLE, ADJUSTABLE ARM

MODEL .......................................... 5
CAPACITY ....................................... 1/16" TO 1-1/2"
LENGTH OF KEY WITH 16" CUTTER .................. 3-1/2"
LENGTH OF KEY WITH 20" CUTTER .................. 7-1/2"
DISTANCE FROM CUTTER TO RESISTANCE ARM POST .... 17-1/2"
MAXIMUM HEIGHT ................................. 12"
TABLE MOVEMENT ................................. 1-3/8"
TABLE DIMENSION ................................ 31" X 30-1/4"
T-SLOTS IN TABLE ............................... 3
STROKES PER MINUTE ............................. 48
TILT TABLE ..................................... YES
RESISTANCE BAR ................................. YES
MOTOR .......................................... 2 HORSEPOWER
