1950 Froriep VBM Two Ram Heads, 90" 4-Jaw Chuck, 95" Swing, 70" UR, Side Head
Have one to sell?
ConditionUsed
1 available

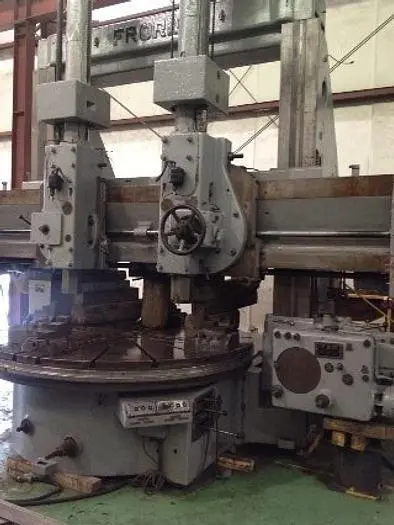

90" Froriep Model 10KZ230 Vertical Boring Mill, (2) Ram Heads, 90" 4-Jaw Chuck, 95" Swing, 70" UR, Side Head
Table Diameter: 90.55"
Max. Swing: 95"
Ram Stroke: 56"
Height Under Crossrail: 70"
Height Under the Ram: 63"
Swivel of Ram: 30/ 45 Degrees
Table Speeds: 12 - 36 RPM
Feed Rates: 0.0098 - 0.4724 IPM
Floor Space: 240" x 144"
Dimensions: 162" x 228" x 172"
Weight (Approx.): 45,000 lbs
Push Button Controls on Table
2-Swivel Rams on Cross Rail
Side Head
37.5 HP Motor
***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
