Acra 2100C Precision Engine Lathe. 21" x 60"
Have one to sell?
ConditionNew
1 available
New

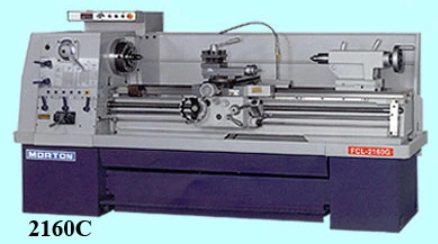

21" x 60" ACRA 2160C Precision Engine Lathe –W/Clutch, 14" OCS, 1600 RPM, 3-1/8" Spindle Bore
Bed:
• BASE ONE PIECE CASTING.
• MEEHANTE CASTING, VIBRATION STRESS RELIEVED.
• INDUCTION HARDENED & PRECISION GROUND BED WAYS PRECISION HAND SCRAPED REMOVABLE GAP.
• FOOT BRAKE.
• TURCITE B COATING BETWEEN THE BED AND CARRIAGE.
Universal Gear Box:
• OIL BATH LUBRICATION.
• HEAT TREATED PRECISION GROUND GEARS.
• INCH, METRIC, MODULE AND DIAMETRICAL THREADS.
Apron and Saddle:
• AUTOMATIC FEED AND THREADING, FULLY INTERLOCKED.
• SADDLE AND TOP SLIDE LOCKING SYSTEM.
• FORWARD-OFF-REVERSE LEVER.
• 4 WAY TOOL POST.
• T-SLOT COMPOUND.
Spindle:
• SUPPORTED BY 2 PRECISION TAPER ROLLER BEARINGS & ONE BALL BEARING.
• DYNAMICALLY BALANCED, HARDENED & PRECISION GROUND.
Headstock:
• FORWARD REVERSING CLUTCH.
• ALL GEARS CHROMIUM MOLYBDENUM, HEAT TREATED & PRECISION GROUND.
Specifications:
Capacity: 21″/30″ x 60″
Swing Over Bed: 21″
Swing Over Cross Slide: 14″
Swing In Gap: 30″
Distance Between Centers: 60″
Bed Width: 13-1/2″
Spindle Nose: D1-8
Spindle Bore: 3-1/8″
Spindle Speeds – Steps: 16 step
Spindle Speeds – Range: 20 ~ 1,600 RPM
Cross Slide Travel: 11″
Compound Slide Travel: 5-3/8″
Inch Threads: 2~72 TPI
Metric Threads: 0.2 ~ 14 mm
Module Threads: 0.3 ~ 3.5
Diametrical Threads: 8 ~ 44
Longitudinal Feeds: 0.0015″ ~ 0.04″/rev
Cross Feeds: 0.000075″ ~ 0.02″/rev
Quill Diameter: 3″
Quill Travel: 7″
Quill Taper: MT NO.5
Spindle Drive Motor: 12-1/2 HP
Voltage: 230V/460V AC / 3 PH
Weight 6750 lbs
Dimensions 121 × 48 × 56 in
12" 3 Jaw Chuck Coolant System Full Length Splash Guard
16" 4 Jaw Chuck Halogen Light Micro Bed Stop
Steady/Follow Rest 4 Way Tool Holder Chuck Guard
OPTIONAL ACCESSORIES: PRICE
Face Plate ......................................................................................................... $ 600.00
Taper Attachment ............................................................................................. $ 1,900.00
Taper Attachment Installation ......................................................................... $ 425.00
Lever Type 5C Collet Closer JFK...................................................................... $ P.O.R.
Import Collet Closer (Taiwan)…....................................................................... $ 1,450.00
Newall Digital Read-Out-10" X 60" DP700….................................................... $ 2,900.00
Newall Digital Read-Out-10" X 60" NMS300……………………………….………………... $ 1,600.00
Newall Digital Read-Out-10" X 80" DP700..................................................... $ 3,290.00
Newall Digital Read-Out-10" X 80" NMS300…….…………………………………………… $ 1,800.00
Newall Digital Read-Out-10" X120" DP700................................................... $ 4,495.00
Newall Digital Read-Out-10" X120" NMS300………………………………………………… $ 2,300.00
Acu-Rite Digital Read-Out-10" X 60" 203....................................................... $ 3,150.00
Acu-Rite Digital Read-Out-10" X 80" 203....................................................... $ 3,600.00
Acu-Rite Digital Read-Out-10" X 120" 203..................................................... $ 4,800.00
Acu-Rite Digital Read-Out-10" X 60" 303.………........................................... $ 3,600.00
Acu-Rite Digital Read-Out-10" X 80" 303.………............................................. $ 4,150.00
Acu-Rite Digital Read-Out-10" X 120" 303.……….......................................... $ 5,250.00
Sony or Fagor or Mitutoyo Digital Read-Out.................................................. $ P.O.R.
D.R.O. Installation ….……………………............................................................... $ 375.00
Aloris Tool Post Set (CA) 5 pc……….……..…..………………………………………………….. $ P.O.R.
Import Quick Change Tool Holder ...……........................................................ $ 500.00
Live Center MT 5…………………...…….................................................................. $ 500.00
