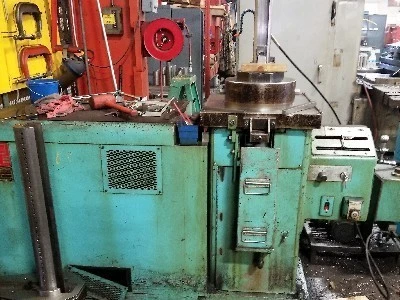

3" MITTS AND MERRIL NO 5 HYDRAULIC KEYSEATER
Have one to sell?
ConditionUsed
1 available
3" MITTS AND MERRIL MODEL 5HFR KS HYDRAULIC KEYSEATER, 24" MAX LENGTH
Model/Type: No. 5
Keyway Capacity: 24" Length x 3" Width
Largest Post: Cap. 4-7/8"
Cutting Speed Variable 7-23 FPM
Return Speed Constant 37 FPM
Cross Head pull in LBS at 1000 PSI 12500lbs
Feed Rates Per Stroke Variable .002- .010
Height Floor to Table: 43 1/2"
Required Floor Space: 71" x 31"
Piece or Part Load Rating 20,000 LBS
requires 42" under machine or raise machine
10 HP Main Motor wired 220 Volt 3 Ph but 220/440/3
Machine Weight:4,000 lbs approx.
Comes with some tooling (see attached pictures)
