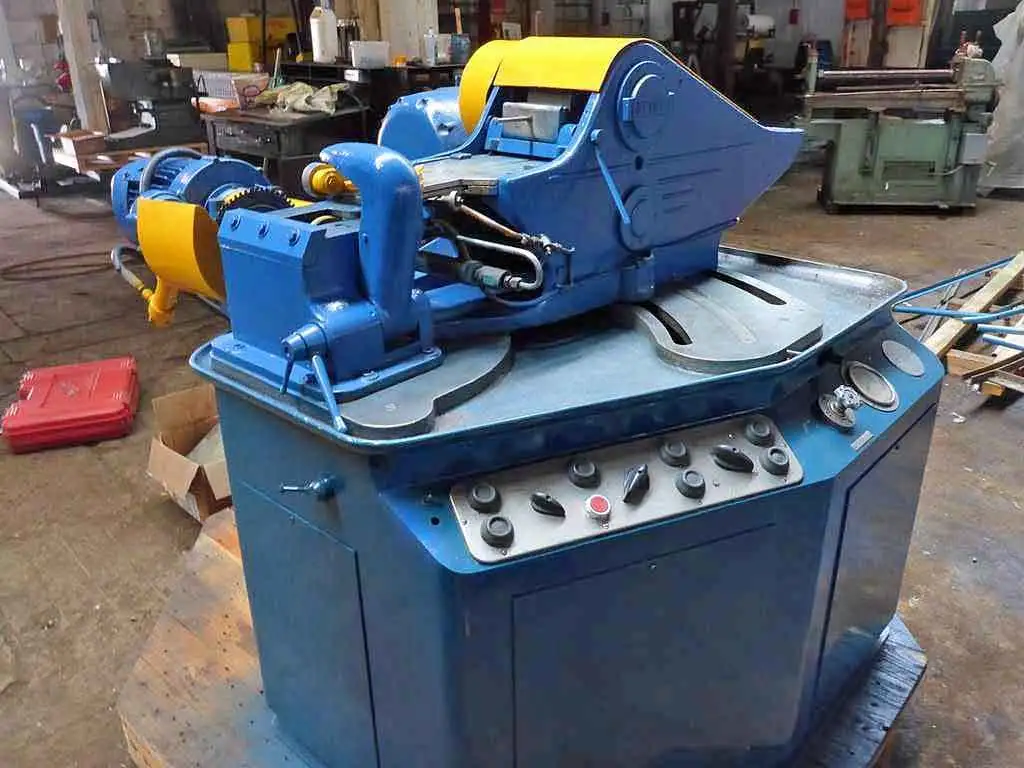

Spiromatic Spiral Duct Former

Double-end Uncoiler
Saw blade duct Cutoff
Roller duct receiving table

Main Motor: 7.5 kw (10 hp), 875 rpm, 220 V, 3 ph
NEBB Trefasemotor NOP.SK ARREG
7.4 kw CONT 50 cy
3500 Dmdr
220 volt
2 Speed, 2 clutch motor
2 Speed motor, high speed & low speed(4 speeds total)
Differential gear ratio allows 4 speeds instead of 2 speeds

Saw blade Motor: approx 5 hp

Hydraulic motor pump unit
MonSun
Sundbyberg
Typ MV2A401-4FO
220 volt / 60 cycle

Max ARB.TRYCK 150 KG/CM2
No 68376

kg/Cm2 Manometer gauge reading from 0 to 100
used to measure pressure. A pressure gauge or vacuum gauge.
A manometer is an instrument that uses a column of liquid to measure pressure

Also equipped with a Hydraulic pressure sensor plug

Dimensions of mill: 6' x 6'
Weight of mill: 3,500 LBS

Uncoiler: 4' x 4'
Weight: 400 LBS

Runout: Posts & rollers free standing
Note: Not equipped with tooling. Spiro requires a forming box for each gauge
and a Shoe for each diameter
