CINCINNATI 1812 POWER SQUARING SHEAR

Have one to sell?
251-943-0048
don@gulfcoastmach.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Shears, Power Squaring Shears
Manufacturer:
CINCINNATI
Model:
1812
Condition:
Good
Year:
1953
Stock #:
1918
Status:
For Sale
Serial #:
27195

Description

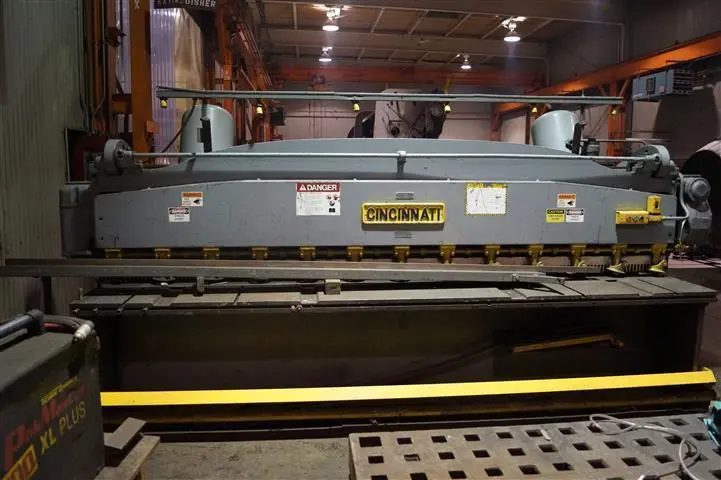

¼” X 12’ Cincinnati 1812 Mechanical Power Squaring Shear with 40” Front Operated Power Back Gauge, 12' Squaring Arm, Front Support Arms, Foot Treadle, Lubrication System, Motor and Electric Controls.

Max Thickness0.25"6.35 mm
Length of Blade12'3.7 m
Hyd/MechMechMech
Back Gauges36"914.4 mm
Power10 hp7.5 kW
SPM60 strokes/min.60 strokes/min.
Dimensions188” W X 84” D X 80” H188” W X 84” D X 80” H
Weight22,600 Lbs22,600 Lbs

Overall Cutting length: 12'
Capacity, mild steel: 1/4"
Speed: 60 SPM
Back gage range: 40"
Rake taper per foot: 1/4"
Ram adjustment: 11/16"
Gap: 18"
Number of Hold Downs: 13
Main Motor Drive: 10HP
Current electrical Arrangement: 230/440/3/60

40" Manual Back Gauge
12' Squaring Arm
Front Supports
Overhead Light System
