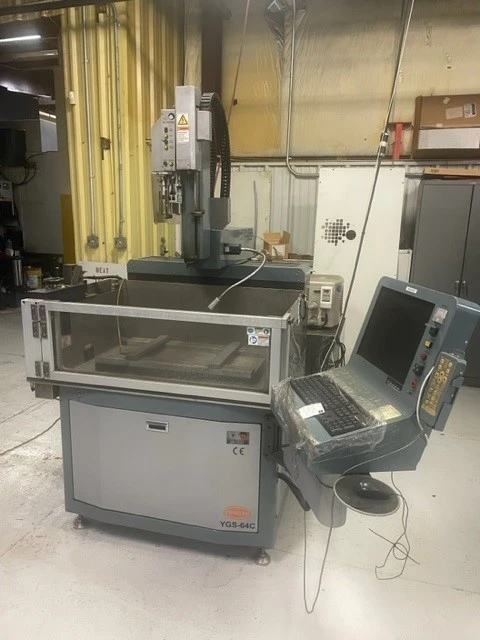

YOUGAR YGS-64C Submerged Type EDM

Catalogue Specifications:
Yougar YGS-64C CNC Small Hole EDM
Weight 2,860.00 LBS
Width 65.00 (in)
Height 79.00 (in)
Depth 69.00 (in)
Travel of x,y axis 650 mm x 400 mm | 25.50 in x 15.75 in
Travel of z axis 400 mm | 15.75 in
Travel of w axis 400 mm | 15.75 in
Machine net weight 1,300 kg | 2860 lbs
Machine footprint 1650 mm x 1750 mm x 2000 mm | 65 in x 69 in x 79 in
Granite table size (l x w) 800 mm x 420 mm | 31.50 in x 16.50 in
Work table size (l x w) 1100 mm x 720 mm | 43 in x 28 in
Work table inserts (12) M8 threaded inserts
Tooling system Aluminum Table Rails; Stainless Steel Rail Guides
Max height of work piece 400 mm | 15.75 in
Max weight of work piece 500 kg | 1100 lbs
Electrode diameter (w/o aec) Ø 0.1 mm ~ Ø 3.0 mm | Ø .004 in ~ Ø .12 in
Electrode diameter (w/ aec) Ø 0.3 mm ~ Ø 3.0 mm | Ø .012 in ~ Ø.12 in
Max length of electrode 400 mm | 16 in
X, y, w, z guides Linear Motion Guides
X, y, w motors / drives Step Motors / Drives
X, y, w table feedback Precision Ball Screws
Type Input power AC / discharge output DC
Switching High current FET
Output amperage mean / peak Max 65A
Power rating 220V / 5KVA
Input power 1 Phase, 220V, 50~60Hz.
Amperage setting 36 step
On-time setting 255 step
Off-time setting 255 step
Servo feed rate 1200mm / min
Meters Voltmeter
Dielectric fluid De Ionized WaterXH hz | Self-Contained; Closed Loop
Water capacity 15 gallons | 57 liters
Max flow rate 0.057 gallonsXH hz | 0.2 liters
