AIDA NC1-60 Gap Frame Press
Have one to sell?
ConditionUsed
1 available

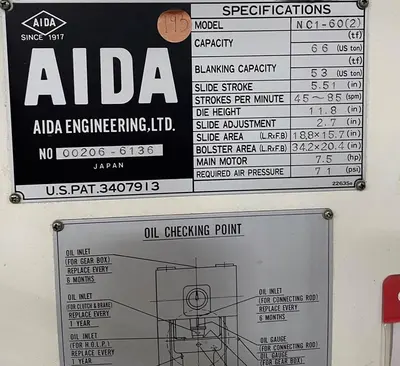

66 Ton Aida NC1-60(2) Gap Frame Press. 6.69" Str., 45-85 SPM
Model: NC1-60(2)
Capacity: 66 (US Ton)
Blanking Capacity: 53 (US ton)
Slide Stroke: 5.51 (in)
Strokes Per Minute: 45-85 (spm)
Die Height: 11.8 (in)
Slide Adjustment: 2.7 (in)
Slide Area (L.R x F.B): 18.8 X 15.7 (in)
Bolster Area (L.R x F.B): 34.2 x 20.4 (in)
Main Motor: 7.5 (hp)
Required Air Pressure: 71 (psi)
