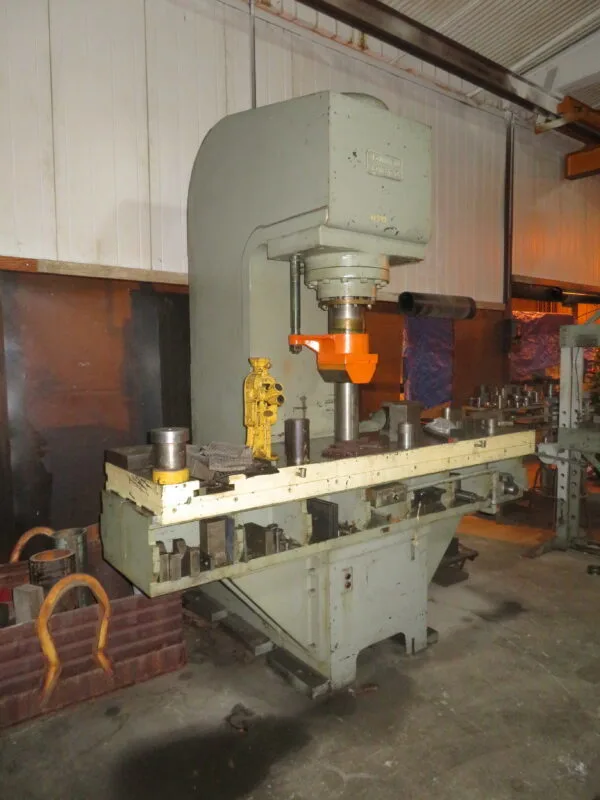

100 Ton Hannifin Hydraulic gap-frame Straightening Press S1000
Have one to sell?
ConditionUsed
1 available
100 Ton Hannifin Model S1000 Hydraulic gap-frame Straightening Press, 96" x 24" Movable Bed,18" Stroke,
• Moveable bed - 96" LR - 24" FB
• 18" stroke Ram Speed - 40 IPM Down - 68 IPM Up
• 7 1/2" Ram Diameter
• Centerline of Ram to Frame - 15"
• Open Height Ram to Table - 26"
• Weight - 17,000 lbs
• Overall Height - 116 1/2"
Power Traverse on Bed
15 HP Hydraulic Pump & Motor
2 HP Table Positioning Motor
Electrics - 3/60/220 Volt
*Available/optional for sale with this press are (2) bushing stock trees with various sized bushings as well as 1 tote box of additional steel bushing stock
*Preliminary equipment descriptions are intended only as a guide, items of importance should be verified by the buyer-
