Bendmak CYL-ST 140-12/5.5, 1/4" x 5' Initial Pinch Plate Roll

WORKING LENGTH: 49.21”
PRE-BENDING: 0.197”
MAX. THICKNESS: 0.217
TOP ROLL: 5.5”
MIN. BENDING: 8.27”
MOTOR POWER: 3 HP
BENDING SPEED: 425” IPM
LENGTH: 79.53”
HEIGHT: 47.24”
WIDTH: 35.43”
WEIGHT: 2,535 LBS

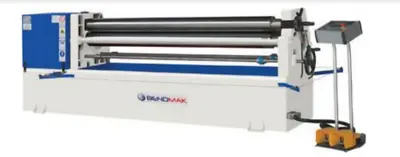

3-ROLL INITIAL PINCH PLATE ROLL WITH A BODY THAT IS MADE OF CAST IRON CONSTRUCTION, CENTRAL ROLLERS POWERED W/ ELECTRIC MOTOR, GEARBOX AND GEAR DRIVE, CONE BENDING DEVICE IS STANDARD, SELF BRAKE MAIN MOTOR, UPPER ROLL IS OPENABLE BY SIDE, LOWER ROLL AND BACK ROLL ARE EITHER POWERED (OPTIONAL) OR EASILY ADJUSTED W/ HAND WHEELS UP & DOWN, SEPARATE ELECTRIC CONTROL PANEL W/ FOOT PEDAL, AND THE CY SERIES MEETS OR EXCEEDS THE SPECIFICATIONS FOR CE, ISO 9001-2008, TSEK AND TURQUM CERTIFICATIONS.
