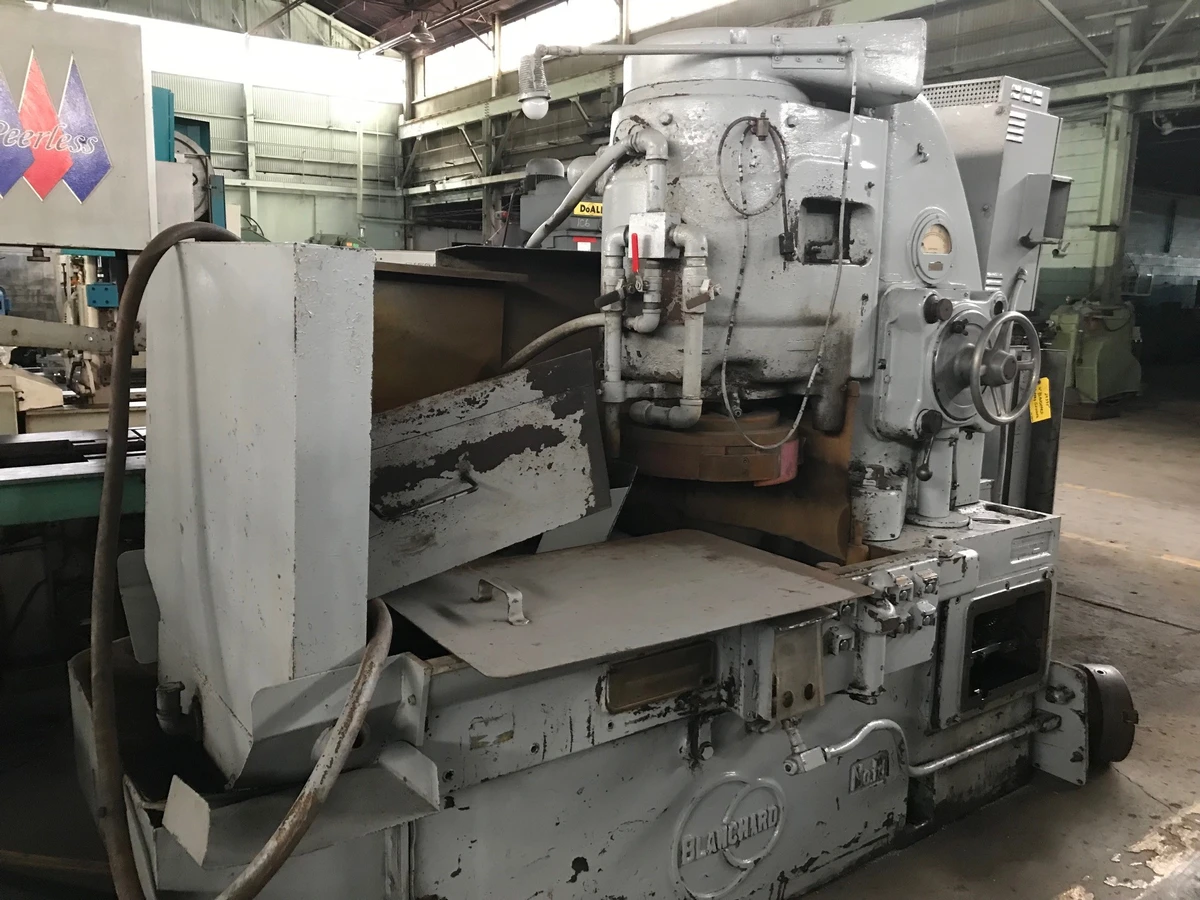

Blanchard Model 18 Vertical Spindle Rotary Grinder

*Preliminary equipment descriptions are intended only as a guide, items of importance should be verified by the buyer-

Chuck Diameter: ................................................................... 36"
Chuck Work Load Capacity:.................................................... 3000 Lbs.
Maximum Vertical Height:........................................................... 12"
Grinding Wheel Size (Segmente3d):....................................... 18" x 5" x 15"
Grinding Wheel Speed:.......................................................... 720 RPM
Chuck Speeds: ........................................ (6) 6, 9, 12, 18, 25, 33 RPM
Automatic Downfeed of Grinding Head:.............................. .004" - .080" / Rev.
Electrics: .............................................. 220/440V 3/60
Overall Dimensions (Approx.):............................................... 112" x 65"
Weight (Est.): ..................................................... 12,900 Lbs.
