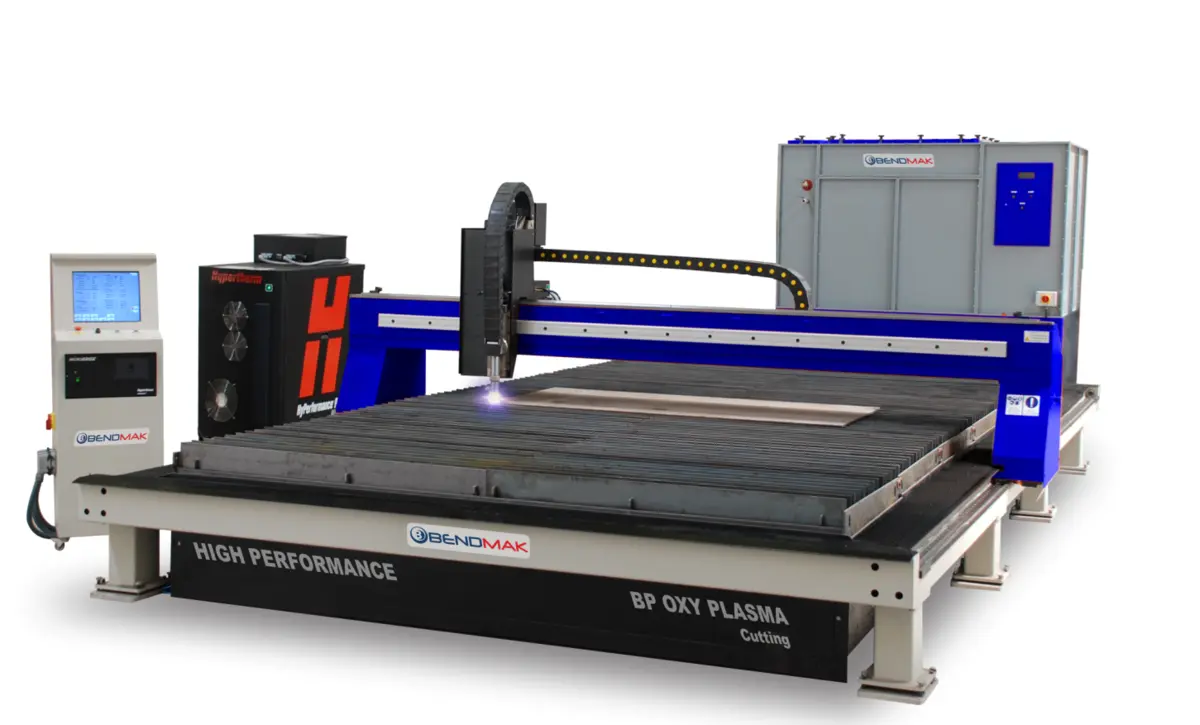

BENDMAK BPM 30/80 XPR300 CNC PLASMA CUTTING MACHINE

* CUTTING WIDTH : 3000mm (118”)
* CUTTING LENGTH : 8000mm (315”)

PİERCE CAPACİTY
MİLD STEEL (ARGON-ASSİST) : 50 mm (2”)
MİLD STEEL (STANDARD O2) : 45 mm (1-3/4”)
STAİNLESS STEEL : 38 mm (1-1/2”)
ALUMİNUM : 38 mm (1-1/2”)

SEVERANCE CAPACİTY
MİLD STEEL : 80 mm (3-3/16”
STAİNLESS STEEL : 75 mm (3”)
ALUMİNUM : 50 mm (2”)

OXY CUTTING STATION

CNC UNIT : HYPERTHERM (USA) MICRO EDGE PRO CNC UNIT
MOTORS : SYNCHRONIZED MITSUBISHI SERVO MOTORS ON X+Y1+Y2 AXIS
THC UNIT : AUTOMATIC ARC SENSOR HEIGHT CONTROL UNIT

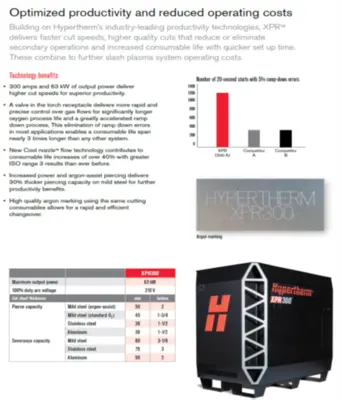

PLASMA UNIT : HYPERTHERM XPR300
MOVEMENT SYSTEM : LINEAR RAIL AND RACK RAIL
CUTTING TABLE : AUTOMATIC COVER CONTROL, DROSS SUMMATION AND CHANGEABLE
GRATE SYSTEM WITH AIR FLOWING LINE.

MACHINE MECHANICAL AND TECHNICAL SPECIFICATION

• 9.8’’ X 26.25’ live cutting area
• 1 XPR300 plasma cutting head
• OXY FUEL CUTTING HEAD
• Designed with strong steel construction for high speeds.
• Fume extraction table with pneumatic switch control, changeable grills, dross collecting system which gives clean and healty working atmosphere by absorbing dust and fume which raises at plasma cutting operation.
• High precious positioning possibility with linear sledge system on all axis.
• Syncronised drive gives smooth and without vibration motion.
• Brushless AC servo motors on all axis.
• Pinion and rack drive system which gives smooth and fast motion..
• ±0,1 mm positioning accuracy.
• Automatic height control and automatic ignition torch system.
• Torch collision protection.
• Windows based CNC control unit.
• Remmant plate stock management database with optional Auto Nesting program which economy in time and material.
• Compare to laser cutting, plasma cutting decreases the cost of working and investment in the ratio Of 1/4 with comparable quality plasma is alternative to laser cutting.
• Cutting surface is close to 90° and vertical roughness tolerance is in minimum level.
• Installation to be implemented according to the gound plan, electrical drawings that BENDMAK will submit with the machine.
• Necessary equipments such as; pressured air, Gas, Electric and Power supply are in the
• customer's responsibility.
• Machine spare parts and consumables are available in our stock.
• Necessary equipments such as; pressured air, Gas, Electric and Power supply are in the customer's responsibility.
Machine spare parts and consumables are available in our stock.

OPTIONS
Unit Qty Price ($)
Additional Torch and Power Source 1 $134,620
5 – Axis Automatic Bevel Cutting Option+Software 1 $67,730
IHTM4000 + APC Automatic Gas Console Oxy Fuel Cutting Sys. 1 $35,090
8,000 m3/h Filter 1 $37,980
Pronest Software + Truhole Software 1 $11,650
Common Line Software 1 $2,500
Auto Nesting Software 1 $5,820
Water Cutting Table Per M² 1 $1,630
Water Cutting Table Height Control Additional 1 $20,960

GENERAL CONDITIONS

WARRANTY: 12 Months. The warranty expires in case of incorrect utilization and requires using original Bendmak spare parts and consumables. The warranty period starts after installation and commissioning of the equipment.

MANUFACTURING LEAD TIME: Approximately 3 months (time from sales order created to production finished).

DELIVERY: FOB, Tampa FL
PAYMENT: - T/T Payment
60% down payment with the placement of an order.
40% balance upon notice of goods ready for shipment

INSTALLATION, COMISSIONING AND TRAINING
Installation, commissioning and training requested by a customer is provided by Bendmak for an extra fee.
All required items such as lubricants, oil, air compressor, items for connections of hydraulic, electric and air, test materials to be used during training and all other possible requirements are subject to be provided by the purchaser.
