Aronson 10000 lb Positioner
Have one to sell?
ConditionUsed
1 available

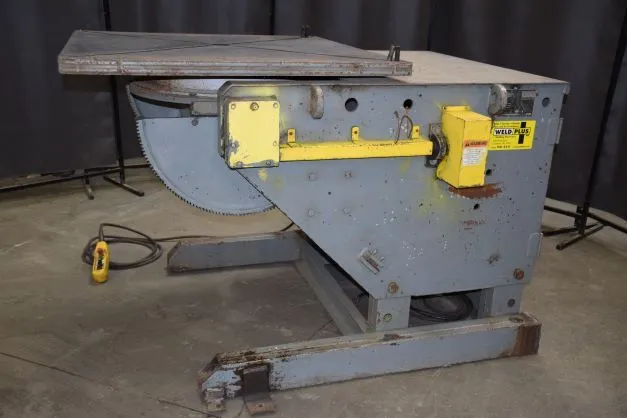

10,000 Lb Aronson HD-100 Welding Positioner, Refurbished
Model HD-100
10,000 lb. capacity at 12″ center of gravity
135° constant speed power tilt
Rotational Torque: 120,000 lbs.
Tilt Torque: 205,000 lbs.
Variable speed rotation from .04 to 1.0 RPM
Manual adjustable height from 44.5” to 74.5” in 6” increments
48” square table
Hand pendant control
480 volts, 3 phase input power
Shipping weight: 4,300 lbs.
Shipping dimensions: 76” X 53” X 44.5” H
S/N: 6595
*** Refurbished Prior To Shipping
How to size a positioner
This Aronson 10000 lb Positioner is engineered to provide rugged performance, yet it can be easily transported throughout your facility. First of all, it features constant speed power tilt and variable speed rotation. In addition, this unit is equipped with double tilt gears which stabilize the load and prevent chassis warpage. Also, it features a 90,000 psi aluminum-bronze worm gear drive that is self locking to prevent accidental load start up. In conclusion, the Aronson Model HD-100 Positioner has exceptional performance and safety.
Add a self-centering chuck for part gripping capabilities. We have many sizes and styles of chucks to choose from. Another option that we have in stock are pipe stands. Pipe stands are available to help support the part being rotated.
