BENDMAK CY4R HHS 230 - 30/08
Have one to sell?
ConditionNew
1 available
New

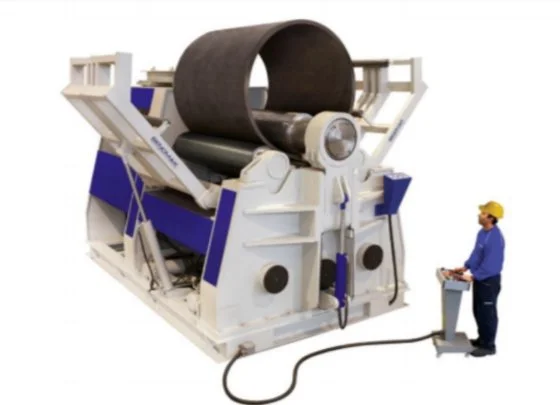

5/16" x 10' BENDMAK CY4R HHS 230 - 30/08 Four-Roll Hydraulic Plate Rolling Machine with Cone Bending Device Induction Hardened Rolls, Digital Display for Side Rolls, Fully Welded Steel (St-52) Construction Body, Separate Moving Control Panel, Two Rolling Speeds, Electro-Hydraulic Calibration, all Rolls are Mounted in Roller Spherical Roller Bearings, Safety Equipment Around the Machine, Central Rolls are Driven by Hydraulic Motors and Planetary Gearboxes.
WORKING LENGTH: 10’
MAXIMUM THICKNESS IN PRE-BENDING: 15/64
BENDING: 5/16
NUMBER OF ROLLS: 4
MOTOR POWER: 10 HP
MIN. DIAMETER: TOP ROLL DIAMETER X 3
TOP ROLL: 9.05”
BOTTOM ROLL: 8.26’
SIDE ROLL: 7.48”
LENGTH: 204.72”
HEIGHT: 51.18”
WIDTH: 55.11”
WEIGHT: 12,853 LBS.
Dual Voltage, Side and Top Support Ready, Variable Speed
