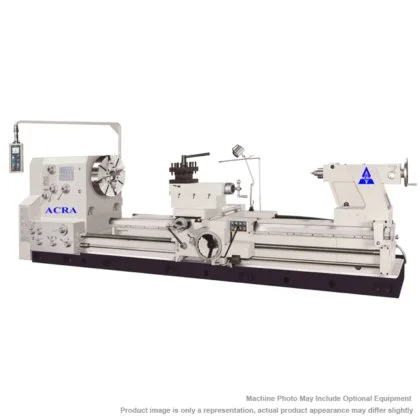

ACRA MODEL 6500 SHT HEAVY DUTY PRECISION ENGINE LATHE
Have one to sell?
ConditionNew
New
65" x 320" ACRA Model SHT 6500 Heavy Duty Geared Head Gap-Bed Engine Lathe, 53" OCS,
Model: 6500SHT
Condition: new
Swing over cross slide:: 53.14"
Swing in gap:: 86.61"
Width of gap:: 22"
Bed width: 33"
Spindle bore:: 6.02"
Taper of spindle:: MT NO.6
Spindle speeds – range:: 4~400 RPM
Compound slide travel:: 16-1/2"
Rapid travel speed to carriage:: 80" /minute
Metric threads:: 1 ~ 120 mm
Module threads:: 0.25 ~ 30 mm
Diametrical threads:: 1 ~ 120 D.P.
Longitudinal feeds:: 0.004" ~ 0.40" /rev
Cross feeds:: 0.002" ~ 0.20" /rev
Quill travel:: 13-3/8"
Quill taper:: MT NO.6
Voltage:: 230/460V AC/3PH
65" x 320" Heavy Duty Precision Gap Bed Engine Lathes 6500SHT Made in Taiwan - High Quality!
Acra’s Precision Gap Bed Heavy Duty Engine Lathes are made in Taiwan and features the following:
Gearbox:
• The gear box is entirely enclosed construction and provide a range of feedings or thread cuttings (inch, metric, module pitch and diametrical pitch).
• Inch and Metric threading without changing gears.
• Oil both lubrication and built in safety clutch safeguards the continuous and proper operation of the universal gear box.
Headstock:
• The spindle is supported by high precision bearings suitable for both heavy and precision cutting.
• The speeds of spindle have 12 steps and designed on theoretical base. All gears and shafts are made of Ni-Cr-Mo steel and carbonize and ground.
• Control of main drive through electromagnetic brake, and automatic forced lubrication.
• Spindle Bore size wide selections-153 mm( 6″ ), 230 mm( 9″ ), 255 mm(1 0″), 310 mm(12″), 355 mm(14″), 405 mm(16″), 530 mm(21″).
Carriage and Apron:
• The compound rest can be fixed on the cross-side anywhere, convenient for cutting work application.
• The apron gives automatic lubrication and locked safety device protect threads and feeding. • Rapid traverse drive for longitudinal-cross feeding and forward & reverse feed are operates very light and convenient.
Taper Attachment:
• The taper attachment is designed to easily operate and rapidly cut taper in high accuracy; the device can produce ± 10 angles.
• Electric cable in steel cover to protect wire from chips and prevent trouble with electric wires.
STANDARD EQUIPMENT: Halogen Light 4 Way Tool Holder Moving Splash Guard 4 Way Rapid Travel Coolant System
ITEM: 65" x 80" - 600" Heavy Duty Precision Gap Bed Engine Lathes MANUFACTURER: ACRA MODEL: 6500SHT
OPTIONAL ITEMS: Steady Rest (2-3/4" — 16-15/16") Steady Rest (11" — 23-1/2") Steady Rest (23" — 34.64") Steady Rest (31.49" — 43.30") Taper Attachment Installation Taper Attachment Full Length Splash Guard 80" Full Length Splash Guard 120" Full Length Splash Guard 160" Full Length Splash Guard 200" Full Length Splash Guard 240" Newall Digital Read-Out-60"/80"/100"/120"/160"/200"/240"
