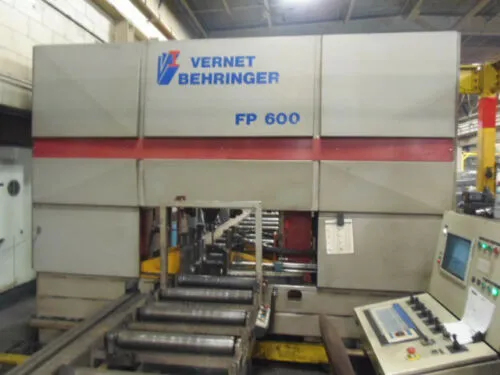

Vernet Behringer FP600 3 Head CNC Drill
Have one to sell?
ConditionUsed
1 available
2000 Vernet Behringer FP600 3 Head CNC Drill , 43' Infeed, 40' Front Conveyor
MANUFACTURER.................... VERNET BEHRINGER
MODEL........................... FP600 CNC
NEW............................. 2000
CAPACITY
USEFULL SECTION............. 23.6" X 13.4"
ANGLES...................... 1.9" - 11.8"
IPE/IPN..................... 3.1" - 23.6"
HEA/HEB..................... 3.9" - 31.5"
FLAT BARS................... 3/8" X 4 MIN.
3/4" X 23 5/8" MAX
SPINDLE TAPER................... SA 40
SPINDLE HP...................... 7.4
MAX. DRILL DIAMETER............. 1.4"
ROTATION SPEED.................. 200 - 800 RPM
SPINDLE STROKE.................. 11.8"
CARRIAGE MAX. SPEED............. 196.5 FT/MIN
43' OF IN FEED STROKE WITH 40' OF CONVEYOR
25' OF MOTORIZED EXIT CONVEYOR CONTROLLED AT THE OPERATOR STATION
LIGHT CURTAINS FOR FRONT AND REAR OF DRILLING AREA
ADAPTIVE FEED-AUTO TRANSFER FROM FAST TO WORKING SPEED
HYDRAULIC DOUBLE ACTING VICE WITH HORIZONTAL AND VERTICAL CLAMPS
CNC NUMERICAL CONTROL WITH PENTIUM PC, 8 MG OF RAM, HARD DISK, 3.5" FLOPPY DISKS, NESTING OPTIMIZATION, BAR LENGTH MEASUREMENT, SPARE TIME PROGRAMMING, 14" CRT, KEYBOARD, RS 232 INTERFACE, DNC LINKING
MISC MANUALS AND SPARE PARTS
VERNET BEHRINGER. 43' OF IN FEED STROKE WITH 40' OF CONVEYOR. SPINDLE STROKE. 11.8". NEW.. 2000. LIGHT CURTAINS FOR FRONT AND REAR OF DRILLING AREA
