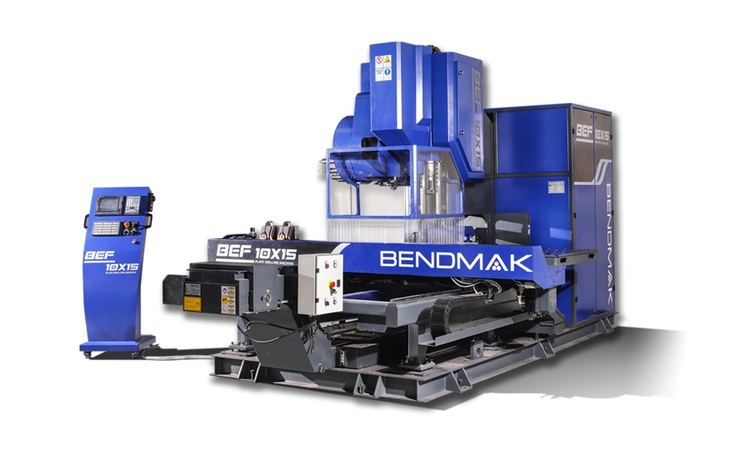

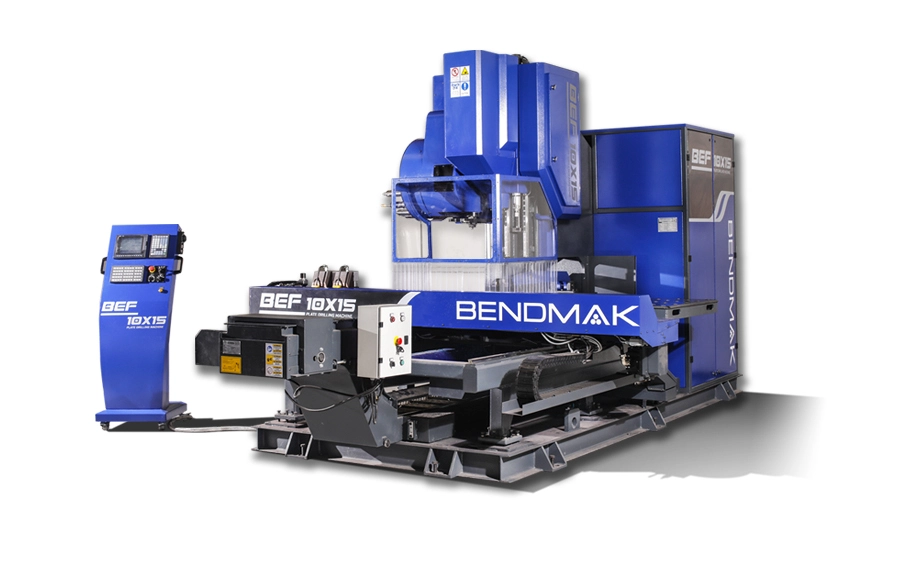

New Bendmak BEF 10 CNC Plate Drilling Machine

BEF Plate Drilling Machines
BENDMAK also has the most advanced technical solution for flange drilling in the steel construction industry. High speed, high processing efficiency, high quality in materials and up to 40" X 60" processing capabilities with the BEF Series of Plate Drilling Machinery

The unique BEF FLANGE Drilling Machine has been developed with the experience gained over half a century. The latest technology was developed for efficient drilling, tapping and surfacing the working plate. All motion is controlled by the CNC (Computer Numerical Control) system.

The main body is manufactured as a solid welded steel construction. After stress relieving the weldment and heat treating the frame is then finally machined.

BEF CNC FLANGE Drilling can process plates with a thickness between 0.250" and 3", within it's working area. The material is easily moved on a ball transfer processing table via the powerful hydraulic clamping jaws. With CNC programming, the part is positioned then locked in place with a hydraulic clamp utilizing hardened 'claw type' jaws and only then, the drilling process is executed. The BEF Flange Drilling machine is capable of drilling tapping, surface milling, simple contour milling and hydraulic pressure machining operations.

Automatic Tool Changing (ATC): 16 Units
Max Material Weight can be Positioned: 1,653 LBS
Total Weight: 15,983 LBS
Area Covered by the Machine: 21.3’ X 18’ X 8.3’
INCLUDES: Mitsubishi M70 V or Siemens Control Panel, Automatic Tool Changer, Adjustable Hydraulic Clamps.

OPTIONAL FEATURES:

Automatic tool and material measurement: ........ $16,250
Online connection hub: .......................................... $1,740
Chip Collector: ....................................................... $5,520
