New PRO Small Series 60 Angle Rolls
Have one to sell?
ConditionNew
1 available
New
2" x 2" PRO Small Series 60 Angle Rolls, hardened rolls, dual voltage.
TECHNICAL DETAILS FOR PRO 60
Roll Diameter: Ø IN 6.97”
Shaft: Ø mm 2.36” / 2.36”
Bending Speed: FT/min - 21
Motor Power: HP- 5.4
Length: FT- 4.6’
Height: FT- 4.76’
Width: FT- 3.12’
Weight: LBS- 2,140
*The dimensions can be changed according to the position of hydraulic tank.
*Data based upon steel 240 N/mm2 yield point.
*Pictures shown in this offer are just for demonstration, might be with or without optional equipment.
Steel (St-52) construction body
On PRO 101 and PRO 121, the rolls are driven by a hydraulic motor+planetary gearbox and gears
Shafts are made of special steel, hardened and grinded
On PRO 101, guide rolls are adjustable manually in one direction
On PRO 121, guide rolls are hydraulically adjustable in two directions
One set standard rolls
Manual lubrication
Hydraulically moveable lower rolls up and down
Digital display for lower rolls

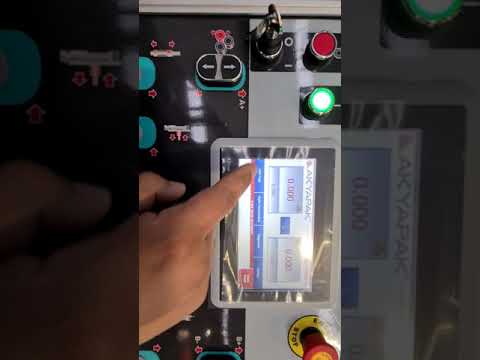

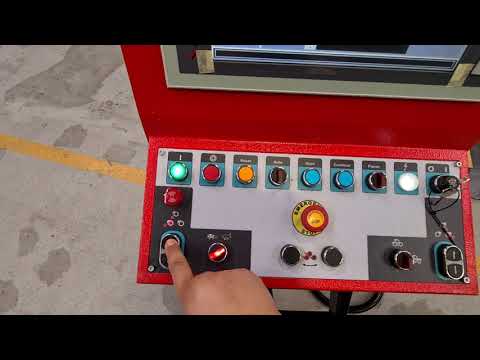

Separate and moveable control panel
Horizontal & vertical working
400 Volt/ 50-60 Hz
Production quality certified by CE, ISO 9001-2015, TSEK and TURQUM
Optional Features:
Special rolls for tubes, profiles and angles
Special mechanic guide Rolls for bending angles (for PRO 101)
Special tooling systems for bending U,I,H profiles
Spiral bending device
Variable speed of rotation
Hydraulically adjustable guide rolls in two directions (for PRO 101)
Digital display for hydraulic guide rolls
NC PIayback Control System
CNC Graphic Control System
Motors in variable voltage and frequency
Bendmak offers extensive alternatives on heavy duty profile bending machines as well. Our machines are strong and reliable with their St-52 weld construction body. Minimum flexion causes less deformation, by the help of our machines’ enlarged roll diameters. By the help of big measurements of bearings, durability and high bending momentum can be obtained.
The power of hydraulic cylinders enables to bend the larger parts without difficulty. Practical and universal rollers creates the possibility of easiness for bending various sections, and this feature gives the opportunity of being more powerful and robust.
Bendmak Profile Bending Machines are 3 rolls driven. This feature allows to have a possibility to make the high capacity bending processes real. Secondly, our 3 Rolls Driven machine minimizes the slipping of the materials during the bending process. The two bottom rolls are hydraulically driven and they can move independently with each other.
Therefore, in comparison with the machines which are top roll drive, the features of our machines enhance the ability of operators and give the opportunity to make prebending process on both edges. Side supporters can move towards three directions to reduce the deformations and to facilitate bending processes, especially with angles and spirals.
