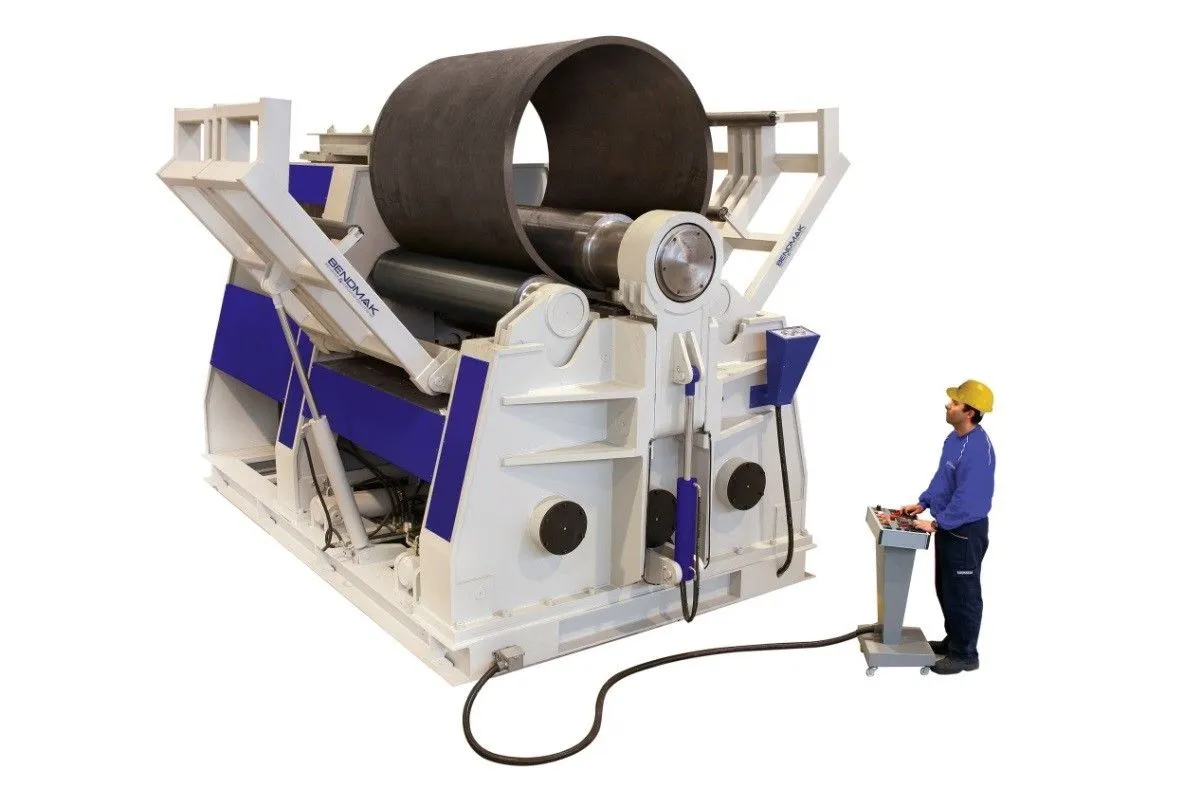

CY4R-HHS 160-15/07 Four-Roll Hydraulic Plate Roll
Have one to sell?
ConditionNew
1 available
New
9/32" X 5' Bendmak Model CY4R-HHS 160-15/07 Four-Roll Hydraulic Plate Rolling Machine with Cone Bending Device, Induction Hardened Rolls, Digital Display For Both Rollers, Steel (ST-52) Machine Body, Separate Control Panel, 2 Speed Control, All Rollers Mounted in Bearing, Drop End Control, Cone Open & Close From Panel, Calibration, and Safety Equipment Around the Machine.
Working length FT 5’
Maximum thickness IN Pre-bending – 3/16
Bending – 17/64
Number of rolls 4
Motor Power HP 3
Min. diameter IN - Ø Top Roll Diameter x 3
Top roll IN - Ø 6.29”
Bottom roll IN - Ø 5.51”
Side roll IN - Ø 4.72”
Length IN 143.7”
Height IN 40.94”
Width IN 44.88”
Weight LBS 4629.7
* Yield Point: 240 N/mm2
*The sheet will be able to be re-open more than the minimum diameters specified here due to the physical material spring back. Particularly at the narrowest diameters, even if the material is completely rolled around the top roll, due to the high back spring, the stated values are approximate and not binding on the manufacturer.
* The specified capacities are for multi-pass rolling operations.
* For cone bending, all bending values must be reduced to %50
Cone bending device
Induction hardened rolls
Digital display for both side rollers
Machine body is steel (ST-52) construction.
Separate control panel
Two speed control
All rollers mounted in bearing
Drop end controlled from control panel in in order to release easily bent metal sheet and lifted upper rolls
Cone open and close controlled from panel
Central rolls are driven with hydraulic motor and planetary gearbox
Calibration
Suitable for CE, ISO9001-2008
Options:
Central and side supports
• Variable speed of rotation
• Material feeding table with various features
• Interchangeable top roll
• Oil cooling system
• Driven side rolls
• Automatic material ejection equipment
• Automatic loading and unloading system
• Deflection compensating system
• Motors in variable voltage and frequency
• CNC
• NC
