CYL-ST 190-20/7 6'-.275" 3-Roll Plate Roll
Have one to sell?
ConditionNew
New

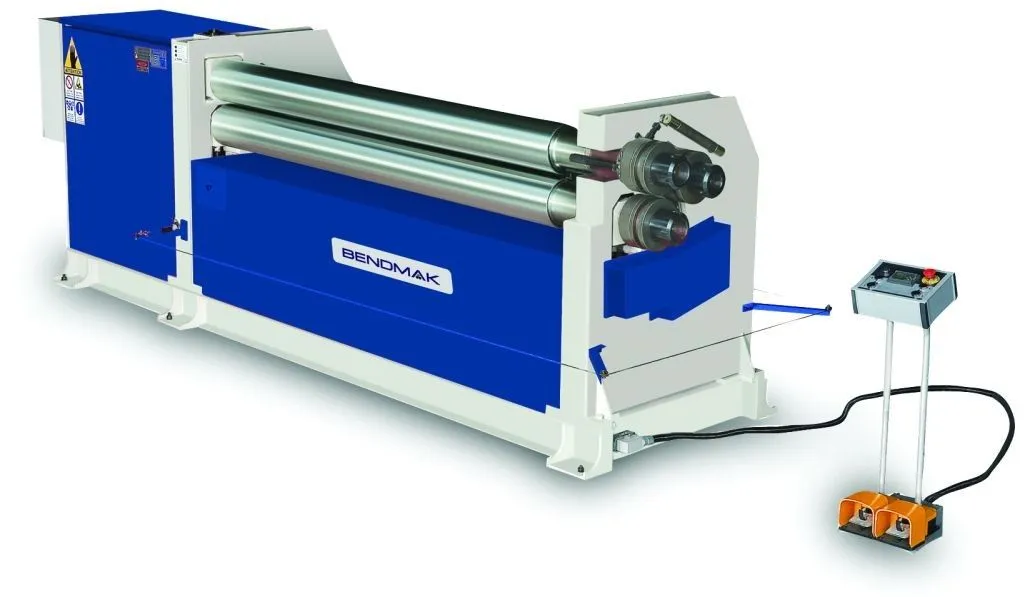

9/32" X 6' Bendmak Model CYL-ST 190-20/7 Initial Pinch Plate Bending Rolls, with Separate Moving Control Panel, Induction Hardened Rolls, Motorized Back Roll, Central Rollers Powered by Electric Motor & Gear Box.
Working length FT 6.8’
Maximum Thickness IN Pre-bending – 15/64”
Bending – 17/64”
Yield Point: 240 N/mm2
Number of Rolls 3
Top Roll Ø IN 7.5”
Min. Bending Ø IN 11.25”
Motor Power kW 4 + 1.5
Length FT 12.5’
Height FT 4.5’
Width FT 4.25’
Weight LBS. 7,936
*Data based upon 240 N/mm2 yield point.
*For cone bending, all bending values must be reduced %50.
*Pictures shown in this offer are just for demonstration, might be with or without optional equipment.
Standard Features:
• Back Roll with Motor
• Cone Bending Device
• Hardened and Pulished Rolls
• Body is made of ST 52 Steel
• Opening Top Roll to side after bending for taking out the material easily
• Asymmetrical design for perfect bending
• For perfect result Top and Bottom rolls are driven by brake electric motor and planetary gearboxes in gear system
• In accordance with CE Norms
• Portable control panel in order to control the machine from required locations.
* Motor For Lower roll.
* Digital display.
Optional Features:
• Extended rolls for profile rolls
• Profile Rolls
• Digital readout for displaying position of the backroll
• Lower roll powered by electric Motor.
