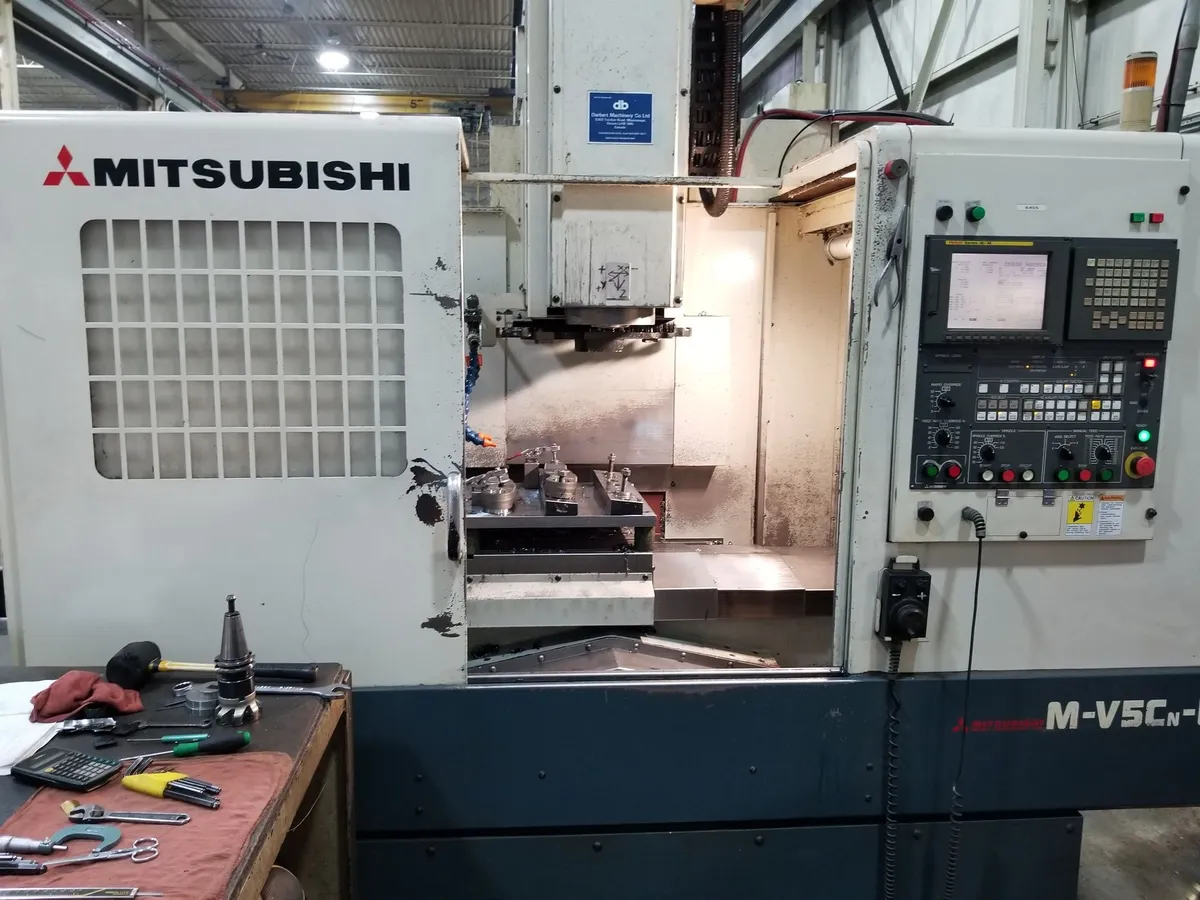

Mitsubishi Model: M-V5CNL

Machine Control: Fanuc 18i-M CNC Control
Machine Travels (X/Y/Z): 40" x 20.1" x 18.1"
Spindle Taper: Cat-40
Spindle Speeds: 80 - 8,000 RPM
Rapid Traverse Rate (X/Y/Z): 1181 / 1181 / 787
Tool Changer Style: Carousel or Side-Mount
Tool Changer Capacity: 18 Tools
Tool Change Time: 3 Seconds
Max Tool Length: 9.84"
Max Tool weight: 15 lb.
Spindle Drive: 15 HP
Max Tool Diameter: 3.35"
Main Unit Approx Weight: 11000.00 lbs
Main Unit Dimensions (in inches): Length: 102.00" Width: 90.00" Height: 122.00"
Components:
Coolant System: Length: 92.00" Width: 30.00" Height: 30.00"
Chiller Unit: Length: 20.00" Width: 12.00" Height: 20.00"
