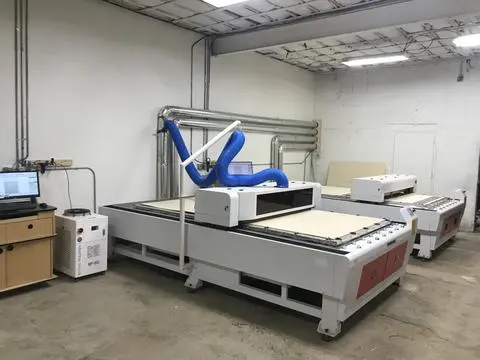

BESCUTTER WORKFORCE 5'X10' CO2 LASER CUTTER 260W
Have one to sell?
ConditionNew
1 available
New
[4'X8' - 5'X10'] ALL SYSTEM INCLUDED BESCUTTER WORKFORCE CO2 LASER CUTTER & ENGRAVER SYSTEM | 150W - 260W- 300W | DOUBLE WORK PLATFORM
Laser Power: 150W (Combined Laser Beam 260W or 300W optional)
Laser Tube Type: ECO2, GSI Advance Technology, JK LASER® CO2 laser tube, 10.6 µm wavelength (ECO2)
Laser Tube Lifetime: 10,000 hours
Power Supply: AC 110V (±10%) 60HZ
Working Area: 4' x 8' (1,300 x 2,500 mm)
5' x 10' (1,500 x 3,000 mm)
Working Platform: Knife-blade
Max Moving Speed: 28 in/s (700 mm/s)
Positioning Accuracy: ±0,003 in (±0.1 mm/m)
Operation Mode: Control panel
Machine Dimensions (LxWxH): 12' x 6' x 4' (3,600 x 1,850 x 1,300 mm)
14' x 7' x 4' (4,100 x 2,100 x 1,300 mm)
Extraction System: Exhaust Fan 1HP / 750W
Assistant Air: Air compressor Hailea 110V
Water Chiller: Industrial Chiller S&A CW 5200 / CW6000
Controlling System: RuiDa controller RDC6445G (EC)
Software: RDWorks / LightBurn® (optional)
Motion Transmission System: Stepper motor / Belts
Limit Switches: Omron limit switches (Japan)
Connection Method: USB cable / Data cable
Lense: 2.5" focal lens - also supports 1.5", 2" and 4"
Software Compatibility: Photoshop, Illustrator, CorelDraw y AutoCAD
Technical Support Service: Zoho desk technical service (Tickets Support)
Warranty: One year (exclude optics and mirrors)
Certification: CE, ISO
