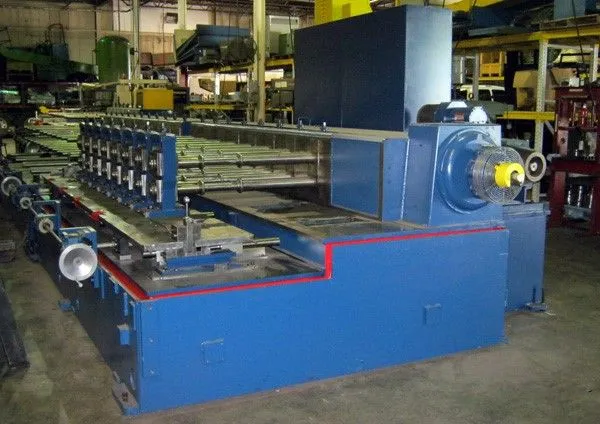

TISHKEN 28-HW-AS-3 DUPLEX ROLL FORM MACHINE

• (3) base design coupled together,
• Fix main block drive back-side, power adjusted spindle support stands on operator side
• Individual stepping motor spindle support drive and ball screw to provide lateral motion for width positioning.
• LED readout position of lateral traverse
• Pinch feed roll assembly before first pass
• Powered feed pinch roll assembly driven from spindle #1
• (28) pairs of spindles on 30 pass base
• Spindle diameter – 3 inch
• Roll space – adjustable 30 to 40 inches
• Upper spindle adjustable - 6 1/2 to 8 3/8 inches.
• Horizontal center distance between spindles – 14” unequal gearing
• Wide faced hardened gear train.
• Floor to pass line – 36 inches.
• Micrometer top spindle adjustments
• Precision ground, heat treated roll spindles.
• Air clutch and brake
• Pressurized lubrication system with gears running in oil
• Automatic lubrication on roll stand bearings.
• Roller and ball gearings throughout
• Welded steel base with integral gutter
• Operator control station
• 75 HP Reliance DC Motor
• 75 HP Allen Bradley drive, rheostat controlled, reversing f.p.m. meter speed adjust potentiometer and regenerative braking.
• Line Speed – 300 f.p.m. maximum.
• Controls and wiring for 480V – 3 phase – 60 Hertz line current.
• Location: Warren, MI
