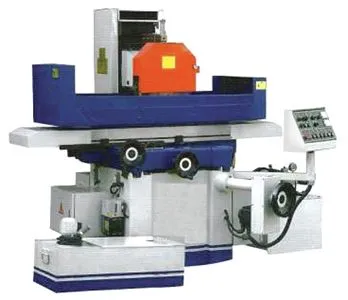

ACRA 1020 AHD AUTOMATIC 3 AXIS SURFACE GRINDER - REGENT SERIES
Grinders, Horizontal Surface
NEW 10" X 20" ACRA AHD Automatic Surface Grinder (3 Axis)
| Table-W | 10" |
| Table-L | 20" |
| Spindle (Horz/Vert) | Horz |
| Power | 2 hp |
| Grinding Wheel Width | 0.75" |
| Grinding Wheel Dia. | 8" |
| Weight | 4000 |
Series: 1020AHD
Working Surface: 10”x20”
Max. Longitudinal Travel: 25-1/2”
Max. Cross Travel: 11-1/16”
Grinding Wheel: 8”x.75”x1.25”
Center Height: 18-9/16”
Wheel RPM: 3,450
Main Motor: 3 HP
Voltage: 230/460V~AC/3PH
Dimensions: 95” x 74” x 91”
STANDARD EQUIPMENT:
GrindingWheel Wheel Flange Leveling Screws & Plates Flange Extractor
Diamond Wheel Dresser
Kanetsu Electric Magnetic Chuck
Wheel Balancing Arbor
Chuck Control
Parallel Dresser
Table Hydraulic Feed
Halogen Light
Coolant System
OPTIONAL ACCESSORIES: PRICE
Kanetsu Electromagnetic Chuck (Standard Accessory) ................................ $ 2,450.00
Kanetsu Fine Pole Electromagnetic Chuck…………………………………………………... $ 3,600.00
Chuck Controller (Standard Accessory) ........................................................ $ 800.00
Coolant System (Standard Accessory) ………………………………………………………... $ 1,250.00
Coolant System with Magnetic Seperator...................................................... $ 2,450.00
Coolant System with Paper Filter..................................................................... $ 2,450.00
Auto Paper Strip Filter With Magnetic Separator Coolant System ............... $ 3,800.00
Grinding Wheel Balance Stand........................................................................ $ 560.00
Wheel Flange .................................................................................................... $ 200.00
Over Head Dresser (Standard Accessory)...................................................... $ 670.00
Hydraulic Parallel Dresser…………………………………………………………………………… $ 3,100.00
Acu-Rite, Newall, Sony, Fagor, Mitutoyo Digital Read-Outs ……………………… $ P. O. R.
D.R.O. Installation ........................................................................................ $ 250.00
Note: Chuck Control Must Be Ordered Separately with Any Electro Magnetic Chuck.
