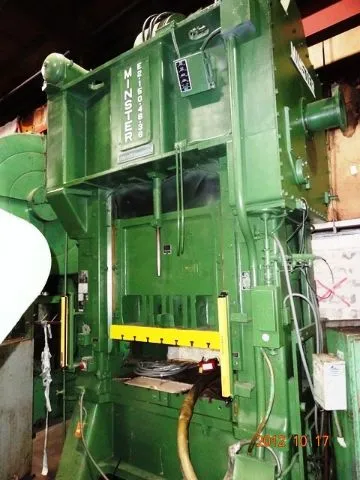

Used 1975 MINSTER E2-150-48-36 | Press Room, SSDC

Have one to sell?
251-943-0048
don@gulfcoastmach.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Press Room, SSDC
Manufacturer:
MINSTER
Model:
E2-150-48-36
Condition:
Good
Year:
1975
Stock #:
1538
Status:
For Sale
Serial #:
21855

Description

150 Ton Minster E2-150-48-36 SSDC Press, 8" Stroke, 10-60 SPM

Tonnage150 T136.078 t
Stroke8"203.2 mm
Shut Height22.5"571.5 mm
SPM0 strokes/min.0 strokes/min.
Vari Speed (Yes/No)YesYes
Bed W36"914.4 mm
Bed L48"1,219.2 mm
Crank (Single/Double)DoubleDouble
Air Clutch (Yes/No)YesYes
Dimensions74" L-R X 102" F-B X 178" H74" L-R X 102" F-B X 178" H
Weight47,000 LBS47,000 LBS

CAPACITY: 150 TON
STROKE: 8"
RAM ADJUSTMENT: 8"
SHUT HEIGHT: 22-1/2"
BED AREA: 48" L-R X 36" F-B
SLIDE AREA: 48" L-R X 36 " F-B T-SLOTTED
SPEED: 10 - 60 SPM
O.A.D.: 74" L-R X 102" F-B X 178" T
APPROX WEIGHT: 47,000 LBS
TEMPORARY SPECIFICATION SUBJECT TO REVISIONS.
PHYSICAL INSPECTION TO VERIFY SPECIFICATIONS IS RECOMMENDED.

AIR CLUTCH & BRAKE
AIR COUNTERBALANCES
VIBRATION PADS
RECIRCULATING LUBE
BANNER LIGHT CURTAIN
5-1/4" T-SLOTTED BOLSTER
TOTAL CLEARANCE .026"
